CAEN RFID

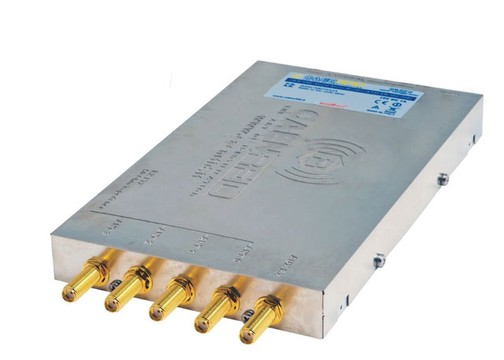

CAEN RFID WA941MEOXAAA Readers

SKU:

WA941MEOXAAA

OEM UHF Stand Alone RFID Reader (ETSI EN 302 208)
Description
ico-plus ico-minus
The CAEN RFID Tau A941M RFID Reader is an advanced solution for long-range identification applications. This embedded UHF multi-protocol reader, compliant with ETSI regulations, offers exceptional versatility and performance in diverse environments. With a programmable output power ranging from 17dBm to 32dBm, it can effectively read tags from distances of up to 10 meters, making it perfect for vehicle mounting, industrial control, and access management. Its compact design facilitates easy integration into existing infrastructures, offering a robust and reliable RFID solution.

Key Features
  • ETSI EN 302 208 Compliant
  • EPC C1 G2, ISO 18000-6C Compliant
  • Up to 4 External Antenna Connectors
  • SW Programmable Output Power up to 1.5mW (32dBm) conducted


Specifications
  • Frequency Range: 865.6÷867.6 MHz (ETSI EN 302 208)
  • RF Power: SW programmable Max.: 1.5 W (32 dBm) conducted
  • Antenna Connector: 5 SMA type female; 4 read point + 1 LBT (Listen Before Talk)
  • Frequency Tolerance: ±10 ppm over the entire temp. range
  • Number of Channels: 4 channels compliant to ETSI EN 302 208
  • Std. Compliance: ISO 18000-6B, Philips UCODE EPC 1.19, EPC C1G2
  • Digital I/O: Five I/O lines 3.3 V out, 5 V tolerant
  • Connectivity: RS232; 9.6÷115 kbit/s data rate (settable)
  • Dimensions: (W)187 x (L)101 x (H)18 mm³ (7.4 x 4.0 x 0.7 inch³)
  • Power Consumption: - 1 A @ 15 V (TX/RX mode), - 260 mA @ 15 V (idle mode)
  • DC Power: 15±5% VDC
  • Operating Temp.: -20 °C to 70°C
  • Weight: 330 g

Main Features

  • RFID: Yes

Documents
ico-plus ico-minus
Product document a941m.pdf WA941MEOXAAA Product document a941m.pdf MOD-CAEN-TAU-A941M
