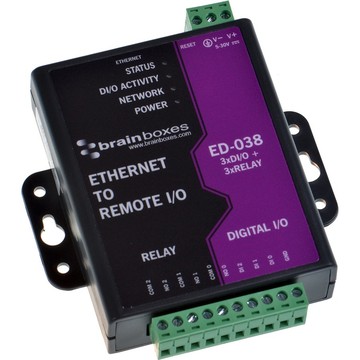

Brainboxes ED-038 Wireless & Networking

• ED-038 Ethernet to Digital I/O Relay
• Installation CD Including Manual, Microsoft Signed Drivers & Utilities
• Quick Start Guide

IO Channels

• IO Protocols: Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
• Description: 3 Digital Inputs and 3 Relays
• Digital Inputs: 3
• Digital Outputs: 3 Relays
• Analog Inputs: 0
• Analog Outputs: 0
• Watchdog: When device comms is lost, outputs can be set to predetermined state
• Power On Values: Outputs can be set to predetermined values on power on
• Safe Values: When Input triggered, outputs can be automatically set to predetermined value

• Input Logic Level 0: -30.0V to +1.0V
• Input Logic Level 1: +2.0V to +30V
• Input Latches: Triggered by user programmable positive or negative edges, stays true until acknowledged
• Input Counter: User progammable- counts positive or negative transitions up to 200Hz
• Digital Output Type: Form A Relay (SPST: Single Pole Single Throw) - Normally Open
• Maximum Output Load Voltage: 60 VDC
• Maximum Output Current Sink: 5.0A per channel

Serial Port

• Serial Gateway: No
• Protocol: RS485

Network

• Number of Ports: 1
• Network Port Type: RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
• Network Protocols: ICMP, IP, TCP, DHCP, HTTP
• Protection: 1500V Magnetic Isolation between ports and network

• Power Input: 5V - 30V DC input, reverse polarity protected
• Power Supply 1: Description Global Power Supply - PW-600
• Power Supply 2: Description Power supply PW-650
• Max Input: 35 Volts

• Operating Temperature Range: 0 °C to +60 °C / 32 °F to +140 °F
• Industrial Standard: No
• Storage Temperature: 0 °C to +70 °C / +32 °F to +158 °F
• Galvanic Isolation: No
• Power Consumption: 100mA@24V 2.5W max

Operating System Compatibility

• Microsoft Windows 10
• Suitable for any device with a Web Browser
• Microsoft Windows 8 32 bit & 64 bit Editions
• Windows Server 2012
• Raspberry Pi
• Android
• Microsoft Windows 7 32 bit & 64 bit Editions
• iOS
• Windows Server 2008 32 bit & 64 bit Editions
• Windows Vista 32 bit & 64 bit Editions
• Mac OS X
• Windows XP 32 bit & 64 bit Editions
• Linux

• METL UL
• EMC: CE
• UL

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
