Bosch

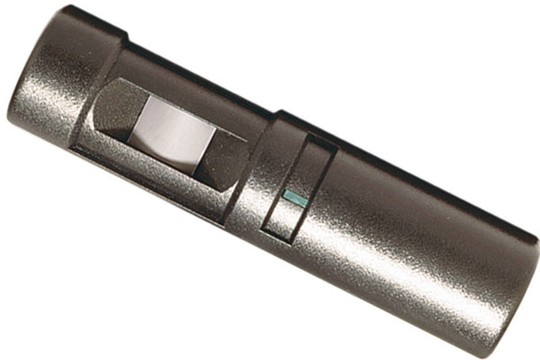

Bosch DS151I Sensors

SKU:

DS151I

Color: Black
Description
ico-plus ico-minus

The Bosch DS151i Access Control Equipment is a cutting-edge solution designed for Request-to-Exit (REX) applications. With its advanced motion detection capabilities, this device effectively signals your access control system or door control unit, ensuring safety and ease of use. Whether mounted on the wall or ceiling, the DS151i provides excellent coverage patterns, adaptable for individual or double door setups. This reliable system features selectable modes for various operating conditions, allowing comprehensive monitoring of exits without compromising security.


Key Features:
  • Single or double door use
  • Wall or ceiling mountable
  • Internal vertical pointability
  • Wrap-around coverage pattern
  • Selectable relay trigger mode
  • Selectable fail safe/fail secure modes

Specifications:
  • Alarm Output: 2 Form "C" relay contacts
  • Dimensions (HxWxD): 1.5 in. x 6.25 in. x 1.5 in. (3.8 cm x 15.9 cm x 3.8 cm)
  • Operating Temperature: -20°F to +120°F (-29°C to +49°C)
  • Material: High impact ABS plastic enclosure
  • Indicators: 1 activation LED
  • Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies from 26 MHz to 1000 MHz at 50 v/m.
  • Mounting Location: Surface mount on wall or ceiling
  • Power Requirements: 12 or 24 VAC, 12 or 24 VDC, 26 mA @ 12 VDC
  • Relay Latch Time: Adjustable to 60 seconds
  • Timer Mode: Programmable resettable or non-resettable
  • Hardware Options: TP160/TP161 Trim Plate available in light gray or black
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Wireless Technology Infrared
Minimum Motion Sensing Distance 96"
Maximum Motion Sensing Distance 10 ft
Passive Infrared Sensor (PIR) Yes
Power Description
Input Voltage
  • 12 V DC
  • 24 V DC
Power Source DC Power
Physical Characteristics
Product Color Black
Product Material Plastic
Mount Type
  • Ceiling Mount
  • Surface Mount
  • Wall Mount
Height 1.5"
Width 6.3"
Depth 1.5"
Weight (Approximate) 0.32 oz
Miscellaneous
Application/Usage Commercial
Additional Information
  • Single or double door use
  • Internal vertical pointability
  • Wrap-around coverage pattern
  • Selectable relay trigger mode
  • Selectable fail safe/fail secure modes
  • Wall or ceiling mountable
  • Externally visible activation LED
Certifications & Standards UL 294 Listed
Country of Origin China
Documents
ico-plus ico-minus
Product document ds150i-ds151i.pdf DS151I Product document ds150i-ds151i.pdf MOD-BOSCH-DS151I
