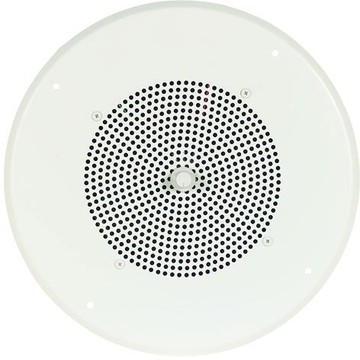

Bogen ASWG1DK Speakerphones

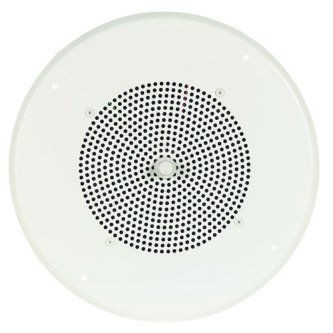

Bogen's ASW G-1 and ASW B-1 amplified loudspeakers are designed for efficient telephone paging applications. Equipped with built-in amplifiers, they deliver exceptional sound quality, making them perfect for small systems. The AS-1 model features easy installation using standard telephone wiring while allowing for volume control at each speaker location. Ideal for interfacing with standard 600-ohm telephone lines, it simplifies your paging and background music setup. Choose between the attractive wall baffle finish of the ASW B-1 or the sleek ceiling grille of the ASW G-1 to suit your aesthetic needs.

• Built-in amplifier: Economically designed for small systems.
• Volume control: Adjust sound levels at each speaker.
• Easy installation: Compatible with standard telephone wiring.
• High-quality sound: Ideal for telephone-paging systems with minimal distortion.

• Rated Output: 1 watt
• Frequency Response: 10Hz to 10kHz
• Signal to Noise Ratio: -70dB
• Input Impedance: 1000 ohms
• Input Sensitivity: 113mV ±4dB
• Sound Pressure Level: 92dB @ 4 feet at 1000Hz
• Dispersion: 90°
• Size: 8" cone
• Supply Voltage Range: 24VDC ±10%
• Shipping Weight: 3 lbs. for ASW G-1; 8 lbs. for ASW B-1
