Black Box Ethernet Extender Kit - G-SHDSL 4-Wire, 22.8 Mbps
Description

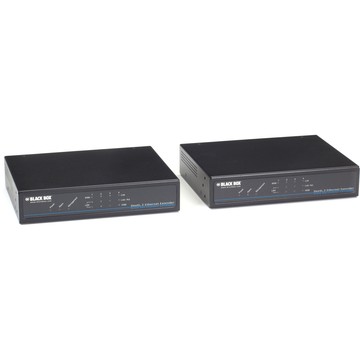

4-Port 4-Wire Managed Ethernet Extender Kit
Technical Specifications
| Physical Characteristics | |
|---|---|
| Height | 1.9" |
| Width | 7.7" |
| Depth | 6.6" |
| Miscellaneous | |
|---|---|
| Additional Information |
Compliance FCC Part 15A; EMC Directive 89/336/EEC; Low-Voltage Directive 73/23/EEC Data Rate 22.8 Mbps at 0.8 mi. (1.4 km), full-duplex maximum Distance 5.2 mi. (8.4 km) maximum LAN Protocols 802.1d transparent bridging; 2K MAC address learning bridge Management Interface Web-based GUI; CLI for local and console access; password protected; SNMPv1/v2 (RFC 1157/1901/1905) agent and MIB (RFC 1213/1493; software upgradable via Web browser/TFTP Modulation TC-PAM 32; 16 MTU Support 1792 bytes Operation Ethernet: Full- or half-duplex QoS Support Rate limiting, rule-based/port-based; traffic classification based on port/802.1p/DSCP; WRR (weighted round robin)/SPQ (strict priority queueing) scheduling algorithm VLAN Support IEEE 802.1q VLAN Tagging; Port-based VLAN, up to 4000 VLANs. VLAN Stacking (Q-in-Q) Interface Ethernet: 10BASE-T/100BASE-TX Connectors (4) 8-position shielded RJ-45 Ethernet; Local/remote interconnect link: (1) shielded RJ-45; Management: Web: (1) shielded RJ-45; console: (1) shielded RJ-45; Power: (1) Universal Input (UI); Link: (1) 10BASE-T/100BASE-TX, autosensing, with half- or full-duplex operation Indicators Power, Alarm, Diagnostic, (4) WAN link, (4) Ethernet Link; (4) Ethernet 100M Environmental Operating temperature: +32 to +122° F (0 to +50° C); Storage temperature: -40 to +185° F (-40 to +85° C) Power 90-240 VAC, 50-60 Hz, universal |
| Certifications & Standards | CE |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Warranty | |
|---|---|
| Limited Warranty | 1 Year |
