Bixolon

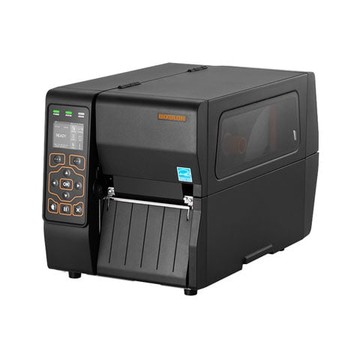

Bixolon XT3-40, 8 dots/mm (203 dpi), display, USB, USB Host, RS232, Ethernet

SKU:

XT3-40

thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 203mm, ribbon core: 25,4mm, speed (max.): 203 mm/s, connection: USB, USB Host, RS232, Ethernet, RAM: 128 MB, Flash: 128 MB, keypad (qQ): incl.: LCD Display, incl.: cable (USB), power supply: (power supply unit, power cable), QSG
Description
ico-plus ico-minus

The Bixolon XT3-40 Barcode Label Printer is an exceptional thermal transfer and direct thermal industrial printer designed for efficiency and reliability in high-volume label printing. With impressive print speeds of up to 8 inches per second and a robust resolution of 203 dpi, this printer meets the demands of warehouses, logistics, and retail industries. Its versatile media handling allows for various labels and sizes, while the user-friendly design ensures easy paper loading and maintenance, making it an ideal choice for any labeling application.


Key Features
  • Print Speeds: Up to 8 ips (203 mm/sec)
  • Print Resolution: 203 dpi
  • Flexible Media Handling: Supports gap, black mark, notch, continuous, and fan-fold media types
  • Multiple Connectivity Options: USB, Serial, Ethernet, and optional Bluetooth and WLAN
  • Memory: 128 MB SDRAM and 128 MB Flash
  • Energy Efficient: EnergyStar® Certified

Specifications
  • Print Method: Thermal Transfer or Direct Thermal
  • Operating Temperature: 5 to 40°C (41 to 104°F)
  • Media Width: 20 to 114 mm
  • Media Thickness: 0.06 to 0.25 mm
  • Dimensions: 240 x 430.5 x 276.7 mm
  • Weight: 9.3 kg (20.5 lbs)
  • Power Adapter: Internal 100-240 VAC, 50-60 Hz
  • Display: 2.4-inch Color TFT LCD
  • Compatible Supplies: B-ribbonTM, Easy Paper Loading

Main Features

  • Rugged: Industrial

  • Equipment Format: Industrial

  • Connection: Serial, USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 7.99 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 13.12 ft
Maximum Print Width 4.25"
Barcode Symbology Supported
  • QR Code
  • PDF417
  • Maxi Code
  • GS1 DataBar
  • Data Matrix
  • Aztec Code
  • EAN-8
  • EAN-13
  • ITF
  • UPC-A
  • UPC-E
  • Code 128
  • Code 39
  • Code 93
  • Codabar
  • Code 11
  • Industrial 2 of 5
  • LOGMARS
  • MSA
  • Plessey
  • POSTNET
  • GS1 DataBar (RSS-14)
  • IMB
  • TLC 39
  • Code 49
  • AZTEC
  • UPC/EAN
  • Interleaved 2 of 5
Real Time Clock Yes
Application/Usage
  • Government
  • Manufacturing
  • Warehouse
  • Logistic
  • Industrial
Features
  • Compact
  • Rugged
  • Robust
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 128 MB
Flash Memory 128 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Screen Size 4"
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Receipt
  • Gap
  • Black Mark
  • Fanfold
  • Continuous Label
  • Notch
Media Sensor
  • Head Open Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Ribbon Low/End Sensor
Media Thickness 9.84 mil
Maximum Roll Diameter 7.99"
Maximum Label Width 4.49"
Fonts & Emulation
Language Emulation
  • BPL-E
  • BPL-Z
  • SLCS
Power Description
Power Source Power Adapter
Frequency
  • 60 Hz
  • 50 Hz
Environmental Conditions
Operating Temperature 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature 4°F (-15.6°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 10.9"
Width 9.4"
Depth 16.9"
Weight (Approximate) 20.50 lb
Miscellaneous
Platform Supported
  • PC
  • SPARC
  • Android
Energy Star Yes
Documents
ico-plus ico-minus
Product document XT3-40.pdf XT3-40 Product document XT3-40.pdf MOD-XT3-40
