ATEN

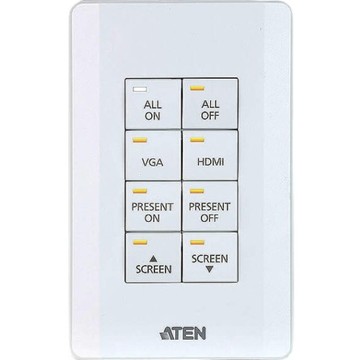

ATEN VK108US Switches

SKU:

VK108US

A fully customizable, wall-mounted interface with backlit buttons that connects to the ATEN Control System to manage room automation.
Prices could not be updated.
Description
ico-plus ico-minus
Parts and accessories from ATEN.
Technical Specifications
ico-plus ico-minus
Physical Characteristics
Product Material Plastic
Form Factor Wall Mountable
Height 1.5"
Width 2.8"
Weight (Approximate) 4.59 oz
Miscellaneous
Package Contents
  • Control System - 8-button Keypad (US, 1 Gang)
  • 1 x Button Pack
  • 1 x Terminal Block
  • 1 x Faceplate
  • 1 x User Instructions
Additional Information

Ethernet:

  • 1 x RJ-45 Female, 10/100Base-T
  • Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
  • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
  • IP: 192.168.0.60
  • Subnet Mask: 255.255.255.0
Keypad Layout: 4~8 buttons customizable in 14 keypad layouts

Switches
  • Controller ID 1 x 16-segment Switch
  • Keypad ID 1 x 8-segment Switch

Reset Button: 1 x Semi-recessed Pushbutton
Power Consumption:

  • DC5V:1.25W:6BTU
  • DC48V:1.58W:7BTU
Environmental
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
Physical Properties

Housing: Plastic
Weight: 0.13 kg ( 0.29 lb )

Dimensions:
(L x W x H) 11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.)

Faceplate Dimension:
(L x W x H) 11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
Application/Usage
  • Meeting Room
  • Classroom
  • Conference Room
Compatibility
  • Aten VK2100 Control System
  • Aten VK1100 Control System
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
