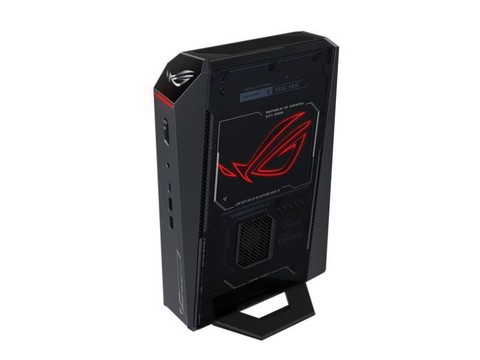

Asus RNUC15JNK9X28AAU Accessories
SKU:
RNUC15JNK9X28AAU
Desktop PCs, Asus ROG NUC, (2025) Gaming Mini PC with Intel Core Ultra 9 (Series 2) ARL-HX CPU, NVIDIA GeForce RTX 5080 Mobile GPU, 32GB DDR5 RAM, 2TB NVMe SSD, Thunderbolt 4, triple-fan cooling, and ARGB lighting
Description
Products and parts from ASUS.
Technical Specifications
| Technical Information | |
|---|---|
| Release Year | 2025 |
| AI-powered | Yes |
| Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 9 |
| Processor Model | 275HX |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 24 |
| Processor Speed | 2.70 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| Processor Socket | Socket BGA-2114 |
| L2 Cache | 40 MB |
| L3 Cache | 36 MB |
| 64-bit Processing | Yes |
| Chipset | |
|---|---|
| Chipset Manufacturer | Intel |
| Memory | |
|---|---|
| Standard Memory | 32 GB |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Memory Speed | 6400 MHz |
| Memory Configuration | 2 x 16GB |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 2 |
| Storage | |
|---|---|
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| SSD Form Factor | M.2 |
| Controllers | |
|---|---|
| Controller Type | NVMe |
| Display & Graphics | |
|---|---|
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | GeForce RTX 5080 |
| Graphics Memory Capacity | Up to 16 GB |
| Graphics Memory Technology | GDDR7 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
|---|---|
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| I/O Expansions | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
|---|---|
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Type-C |
| Number Of Ethernet Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs (Rear) | 2 |
| DisplayPort (Rear) | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
|---|---|
| Operating System Platform | Windows |
| Operating System | Windows 11 Home |
| Physical Characteristics | |
|---|---|
| Form Factor | Mini PC |
| Height | 2.2" |
| Width | 11.1" |
| Depth | 7.4" |
| Weight (Approximate) | 6.88 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Features |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Documents
ROG_NUC_2025.pdf RNUC15JNK9X28AAU
