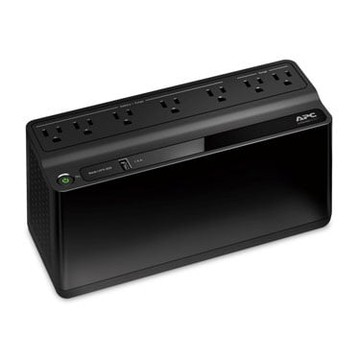

Description
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
- 3-Step Plug and Play Setup
- Authentec TruePrint Sensor Technology
- Compact Portable Design
- Competitively priced
- Designed for accurate verification
- Eliminate password lists
- Fast User Switching for Windows XP
- Limit access to computers
- PC compatible
- Self-Powered Operation
- USB connected
Technical Specifications
| Technical Information | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 7 |
| Number of Surge-only Outlets | 2 |
| Cord Length | 5 ft |
| Transfer Time | 6 ms |
| Application/Usage |
|
| Power Description | |
|---|---|
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 330 W |
| Input Voltage | 120 V |
| Input Voltage Range | 92 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 490 J |
| Management | |
|---|---|
| Alarm |
|
| Controls/Indicators | |
|---|---|
| Status Indicators |
LED Status Display:
|
| Battery Information | |
|---|---|
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Battery Energy | 237.6 kJ |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Backup/Run Time (Half Load) | 11.80 Minute |
| Typical Battery Recharge Time | 10 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 35 dB(A) |
| Thermal Dissipation | 4.69 W |
| Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Height | 5.5" |
| Width | 10.8" |
| Depth | 4.1" |
| Form Factor | Tower |
| Mounting Preference | No Preference |
| Weight (Approximate) | 7.69 lb |
| Miscellaneous | |
|---|---|
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | California (CEC) Battery Charger|cTUVus|NOM |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BE600M1_ROHS_DECLARATION&p_FileName=BE600M1KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562998&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562998&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
| Directly Connected Equipment Guarantee | Lifetime |
Documents
backups.pdf BE600M1
