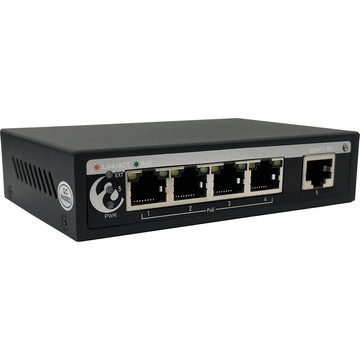

Amer Networks SD4P1-90 Wireless & Networking

SKU:

SD4P1-90

Amer Networks, 5ports 10/100Mbps PoE switch 96W af/at, 5 Port PoE Switch IEEE802.3af/at with 4*10/100Mbps RJ-45 PoE ports and 1*100Mbps RJ-45 Uplink port. Extend mode support allows PoE on 250m of cable. Surge Protection fanless. PoE Budget 96W, 30W max per port.
Description
ico-plus ico-minus
Parts and products from Amer Networks.
Technical Specifications
ico-plus ico-minus
Technical Information
Features Fanless
Interfaces/Ports
Total Number of Network Ports 5
Uplink Port Yes
Network (RJ-45) Yes
Port/Expansion Slot Details
  • 4 x Fast Ethernet PoE
  • 1 x Fast Ethernet Uplink
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-T
Network & Communication
Layer Supported 2
Networking Standards
  • IEEE 802.3x
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3af
  • IEEE 802.3at
Management & Protocols
Manageable No
Power Description
PoE (RJ-45) Port Yes
PoE Budget 96 W
Input Voltage
  • 120 V AC
  • 230 V AC
Frequency
  • 50 Hz
  • 60 Hz
Power Source Power Supply
Physical Characteristics
Height 1.1"
Width 4.6"
Depth 3.3"
Weight (Approximate) 1.87 lb
Miscellaneous
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
