Altronix

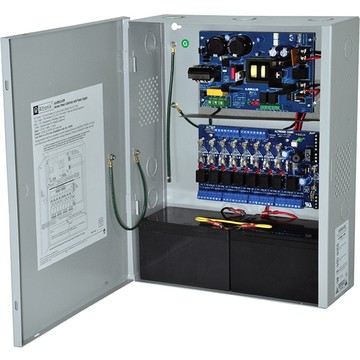

Altronix AL600ACM220 Proprietary Power Supply - 12 V DC; 24 V DC

SKU:

AL600ACM220

Proprietary Power Supply, Altronix AL600ACM220, Input 220 V AC, Output 12 V DC / 24 V DC, Wall Mount
ico-puzzle-piece-02 This product is compatible with...
Prices could not be updated.
Description
ico-plus ico-minus
Products and parts from Altronix.
Technical Specifications
ico-plus ico-minus
Technical Information
Protection Type
  • Short Circuit
  • Thermal Overload
Power Description
Input Voltage Type AC
Input Voltage 220 V AC
Input Voltage Range 198 V AC - 256 V AC
Output Voltage
  • 12 V DC
  • 24 V DC
Output Voltage Detail
  • 12 V DC @ 6 A
  • 24 V DC @ 6 A
Input Current 1.2 A @ 220V
Output Current 6 A
Controls/Indicators
Status Indicators
  • Red LEDs indicate outputs are triggered (relays energized)
  • Green LED indicates FACP disconnect is triggered
  • AC input and DC output LED indicators
Physical Characteristics
Form Factor Wall Mount
Height 15.5"
Width 12.3"
Depth 4.5"
Weight (Approximate) 18.05 lb
Miscellaneous
Certifications & Standards CE
NDAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
