Aiphone

Aiphone AX-8MV Readers

SKU:

AX-8MV

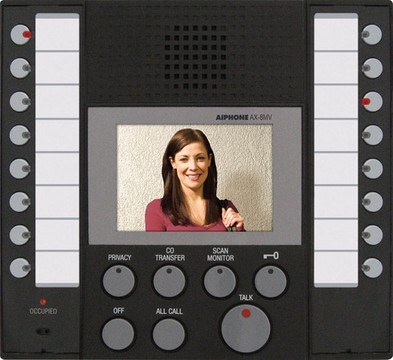

Aiphone AX-8MV Video Door Phone - 3.5",Aiphone AX-8MV Video Door Phone"
Description
ico-plus ico-minus

The AX-8MV is an audio video master station for the AX series. The unit is CAT-5e homerun wired to it's CEU and features a 3 -1/2" TFT monitor, an oversized TALK button to activate the VOX or PTT style mmunication, door call-in indicator, call button for other master stations in the system, a call tone volume control and a button for door release. The AX-8MV can communicate to 8 masters and 8 door stations.

Technical Specifications
ico-plus ico-minus
Technical Information
Maximum Wiring Distance 980 ft
Display & Graphics
Screen Size 3.5"
Display Screen Type LCD
Power Description
Input Voltage 24 V DC
Physical Characteristics
Product Color Black
Height 6.9"
Width 7.6"
Depth 1.9"
Weight (Approximate) 1.21 lb
Miscellaneous
Package Contents
  • AX-8MV Video Door Phone
  • Metal Bracket
Application/Usage Door Entry
Additional Information
  • Call Tone: Tremolo ring tone & blinking LED
  • Communication: Open voice hands-free (VOX or Push-to-Talk)
  • Scanning Lines: 525 lines
  • Video Output: NTSC Standard 1Vpp (0.7-1.4Vpp)
  • Headset Jack: 3.5mm mic and speaker jacks
  • Calling Capacity: Up to 7 additional master stations Up to 120 door / sub stations
  • Mounting: Desk with flip-up stands, or wall mount with provided metal bracket
  • Wall mount box:2-gang electrical box or ring
  • Wiring: CAT-5e homerun to CEU
  • Wiring Connection:RJ45 jack
  • Housing: ABS Resin
Country of Origin Japan
