Elo

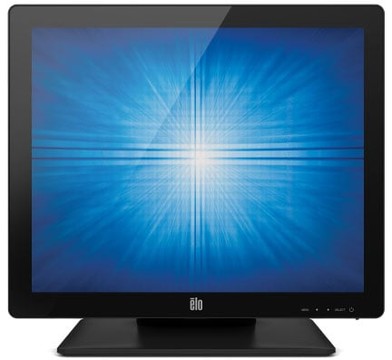

Monitores Elo E144246

SKU:

E144246

1517L 15-inch LCD (LED Backlight) Desktop, WorldWide, AccuTouch (Resistive) Single-touch, USB & RS-232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black
Descripción
ico-plus ico-minus

The Elo 1717L Touchscreen Monitor is a robust, commercial-grade solution designed for high-usage environments such as retail and hospitality. With a sleek, thin design, this 17-inch LED touch display combines cutting-edge technology with features tailored for continuous public use. It stands out with its **edge-to-edge zero-bezel** design, providing exceptional optical quality, while its energy-efficient LED backlighting ensures 40% energy savings. Equipped with versatile mounting options and a range of touch technologies, the 1717L is perfect for point-of-sale and interactive digital signage applications.


Key features:
  • Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
  • Traditional Bezel: AccuTouch resistive and IntelliTouch surface acoustic wave
  • Antiglare or Clear glass options available
  • Sleek and thin design with "Built for Touch" Reliability
  • 40% Energy Savings using LED Technology
  • 3 Year Standard Warranty
  • Integrated cable management
  • Space-saving design: Desktop, wall, or VESA mounting

Specifications:
  • Model: 1717L
  • Color: Black or White
  • Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
  • Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
  • Thickness: 1.7 inches / 43 mm
  • LCD Technology: Active matrix TFT LCD with LED backlighting
  • Diagonal Size: 17.0"
  • Aspect Ratio: 5:4
  • Native Resolution: 1280 x 1024
  • Supported Resolutions: Various, including 640 x 480, 800 x 600, 1024 x 768
  • Brightness (typical): LCD Panel: 250 nits; with AccuTouch 200 nits
  • Weight: Unpackaged: 5.4 kg / 11.9 lb.; Packaged: 8.3 kg / 18.3 lb.
  • Power Consumption: Typical: 20W; Sleep: 1.8W; Off: 1.4W
  • Touch Interface: Serial (RS232) and USB
  • Warranty: 3 years standard

Características principales

  • Tocar: Sí

  • Conexión: USB, Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 15"
Viewable Screen Size 15"
Screen Mode XGA-2
Screen Surface Anti-glare
Response Time 16 ms
Aspect Ratio 4:3
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Adjustable Display Angle Yes
Mount Type
  • Desk Mountable
  • Wall Mountable
  • Pole Mount
  • Rear Mount
Backlight Technology LED
Features Security Lock
Video
Maximum Resolution 1024 x 768
Standard Refresh Rate 75 Hz
Color Supported 16.2 Million Colors
Contrast Ratio 700:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type 5-wire Resistive
Interfaces/Ports
USB Yes
VGA Yes
Serial Port Yes
Built-in Devices
Built-in Devices USB Hub
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
  • 12 V DC
Operating Power Consumption 12 W
Standby Power Consumption 1.70 W
Off-Mode Power Consumption 1.30 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 16"
Height with Stand 12.50"
Width with Stand 14.10"
Depth with Stand 7.80"
Weight (Approximate) 9.48 lb
Miscellaneous
Package Contents
  • 1517L Rev B 15-inch Multifunction Desktop
  • Detachable Touch and Video Cables
  • Power Cable
Certifications & Standards
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
  • IEC 60320 C6
Environmentally Friendly Yes
Warranty
Limited Warranty 3 Year
Documentos
ico-plus ico-minus
Documento del producto 1517l-2021.pdf E144246 Documento del producto 1517l.pdf MOD-1517L-1717L Documento del producto 1717l.pdf MOD-1517L-1717L
