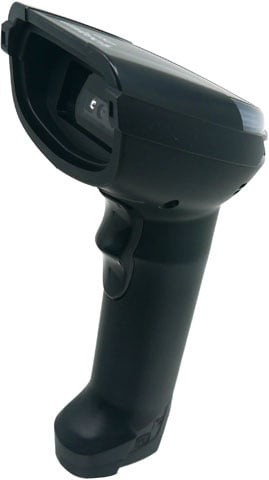

Escáneres de Código de Barras Portátiles Unitech MS851-SUBB0C-LG

SKU:

MS851-SUBB0C-LG

Cordless Barcode Scanner, Unitech MS851B, 1D Linear Laser, General Purpose, USB, Handheld, Bluetooth, Black, IP42, ESD-Safe, Includes Cradle
Descripción
ico-plus ico-minus

The Unitech MS851 ESD-Safe Rugged Barcode Scanner is expertly engineered for cleanrooms and static-sensitive manufacturing environments. Utilizing advanced laser scanning technology, it delivers rapid, accurate reading of 1D barcodes, even those that are damaged or poorly printed. With a scanning range of up to 5 meters and a scanning speed of 104 scans per second, it significantly enhances workflow efficiency. Its robust ESD protection safeguards against static discharge, making it a reliable choice for sensitive applications. Compact yet durable, this scanner also features an ergonomic design, ensuring comfort during extended use.


Key Features
  • ESD Protection: Withstands ESD up to 105-109 ohms per square.
  • Versatile Scanning: Excellent working range and high-speed scanning performance.
  • Wide Compatibility: Supports most standard 1D barcodes.
  • Long Lifecycle Trigger: Up to 10,000,000 activations.
  • Rugged Design: Rated IP42, can survive drops from 2.1 meters.
  • User-Friendly Indicators: Louder beeper and vibrant LED feedback.
  • Lightweight: Compact design at only 147g without cable.

Specifications
  • Optical & Performance:
    • Receiving Device: Laser diode
    • Light Source: 650 nm visible
    • Scan Rate: 104 scans/sec
    • Depth of Field: Ranges from 3.05 cm to 457.20 cm
    • Symbologies Supported: Various 1D formats including UPC, Code 39, Code 128
    • Operation Mode: Trigger, Continuous, Presentation modes
  • Electrical:
    • Operation Voltage: 4 VDC to 5.5 VDC
    • Current Consumption:

Características principales

  • Color de la funda: Black

  • conectividad: Cordless

  • Conexión: USB, Bluetooth

  • Capacidad de Escaneo: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Barcode Symbology Supported

1D:

  • Code 39
  • Full ASCII Code39
  • Interleave 2 of 5
  • UPC A/E/E1
  • MSI
  • Codabar
  • Code 11
  • EAN8/13
  • Code 93
  • Code 128
  • EAN128
  • Code32
  • GS1 databar Code
  • Bookland EAN
  • Discreate 2 of 5
  • Chinese 2 of 5
  • ISBT 128
  • UCC Coupon Extended Code
  • Bookland 128

Data Formatting:

  • Prefix
  • Suffix
  • Code ID
  • Reformatting Date
Light Source Laser
Scan Rate 104 scan/s
Scan Mode Trigger
Scan Pattern Linear
Scanning Distance 15 ft
Features
  • Notification LED
  • Beep
  • Vibration
  • Data Formatter
Cable Type Included USB
Reading Angle (Skew) 40°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 35°
Maximum Ambient Light 86111 lux
Drop Specification
  • 2.1 M onto concrete
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 100 mil
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Battery Information
Battery Capacity 2850 mAh
Maximum Battery Run Time 30 Hour
Environmental Conditions
Operating Temperature 14°F (-10°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 95%
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Height 7"
Width 2.8"
Length 3.5"
Weight (Approximate) 7.51 oz
Miscellaneous
Package Contents
  • 1 x MS851B ESD Bluetooth ESD-safe Laser Scanner
  • 1 x Cradle
  • 1 x USB Cable
Compatibility

Unitech MS851B:

  • Smartphone
  • PC
  • Tablet
Ingress Protection (IP) Rating IP42
Application/Usage
  • Manufacturing
  • Warehouse
Platform Supported
  • PC
  • Smartphone
TAA Compliant Yes
Warranty
Limited Warranty 36 Month
Additional Warranty Information
  • This product is warranted against defects in workmanship and materials for a period of three years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
Documentos
ico-plus ico-minus
Documento del producto ms851b.pdf MOD-MS851-ESD Documento del producto ms851b-esd.pdf MOD-MS851-ESD Documento del producto ms851.pdf MOD-MS851-ESD Documento del producto ms851-esd.pdf MOD-MS851-ESD
