Datalogic

Escáneres de Código de Barras Portátiles Datalogic TD1120-BK-90K1

SKU:

TD1120-BK-90K1

The Datalogic TD1120-BK-90K1 ships as a three-unit kit, each scanner connecting to a USB host via cable for straightforward, battery-free operation. At the heart of each unit is a linear imager capable of 4 mil maximum scan resolution with an omni-directional scan pattern, autodiscriminating all standard 1D codes plus GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, and GS1 DataBar Stacked Omnidirectional. Depth of field reaches 3.2 in at 7.5 mil on Code 39, extending to 6 in at 13 mil on EAN-13, with a maximum scanning distance of 5.91 in. Reading angles of 70 degrees skew, 65 degrees pitch, and 45 degrees roll accommodate varied presentation, while a 25% minimum print contrast enables reliable reads on lower-quality labels. The scanner tolerates ambient light up to 20000 lux and withstands repeated drops from 1.5 m onto concrete, backed by an IP30 rating. At 5.40 oz and measuring 6.7 in tall, 2.7 in wide, and 4.1 in deep, the black handheld chassis suits library, government, industrial, and retail environments.
No se han podido actualizar los precios.
Descripción
ico-plus ico-minus

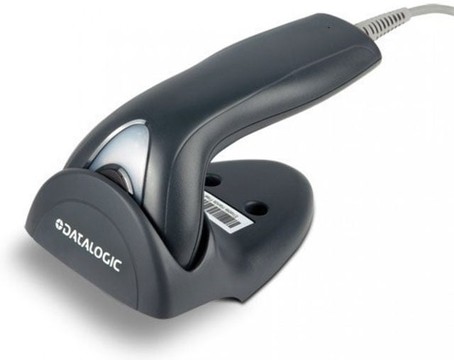

The Datalogic Touch TD1100 is a corded handheld contact linear imager barcode scanner designed for organizations that need a cost-effective, reliable solution for low-throughput barcode reading. Suited to retail service points, banking and finance, public administration, and libraries, it delivers excellent reading performance on virtually all 1D and stacked linear codes, including damaged or poorly printed barcodes. Two reading window sizes — 6.5 cm / 2.6 in and 9.0 cm / 3.5 in — accommodate both standard and wide codes on documents, books, and utility bills. USB and RS-232 interface options ensure broad host compatibility, while a drop resistance of 1.5 m / 5.0 ft adds durability that exceeds typical entry-level expectations. The compact, lightweight design and an innovative 'read-thru' holder also support comfortable hands-free operation at the point of service.

Características principales

  • Punto de Venta: Sí

  • Color de la funda: Black

  • conectividad: Corded

  • Conexión: USB

  • Capacidad de Escaneo: 1D, 2D, Imager

Especificaciones técnicas
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type
  • Imager
  • Linear
Maximum Scan Resolution 4 mil
Depth of Field
  • 0" - 3.2"@7.5mil - Code 39
  • 0" - 4.7"@10mil - Code 39
  • 0" - 6"@13mil - EAN13
Scan Pattern Omni-directional
Scanner Range Short Range
Scanning Distance 5.91"
Cable Type Included USB
Reading Angle (Skew) 70°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 45°
Maximum Ambient Light 20000 lux
Drop Specification Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast 25%
Minimum Element Resolution (Code 39) 7.5 mil
Maximum Element Resolution (Code 39) 10 mil
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Height 6.7"
Width 2.7"
Depth 4.1"
Weight (Approximate) 5.40 oz
Miscellaneous
Additional Information

USB Cable separate

Ingress Protection (IP) Rating IP30
Application/Usage
  • Library
  • Government
  • Industrial
  • Retail
Country of Origin Vietnam
