Escáneres de Código de Barras Portátiles Datalogic GFS4520-BKK1-RED

SKU:

GFS4520-BKK1-RED

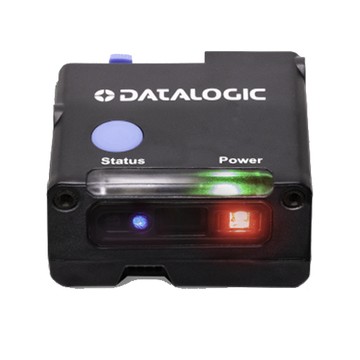

Fixed Barcode Scanner, Datalogic Gryphon 4500, Kit, 2D, MP, Red Illumination, 5V, USB-only, microUSB Connector, Black (Kit Includes Scanner and USB Cable 94A051968)
Descripción
ico-plus ico-minus
The DataLogic Gryphon 4500 Barcode Scanner is engineered for superior performance in various applications, making it the ideal choice for retail, healthcare, and light manufacturing environments. With its sleek design and advanced Megapixel sensor technology, this scanner ensures quick and accurate data capture for both 1D and 2D barcodes. Featuring seamless wireless charging and communication, it offers reliability and productivity with minimal downtime. The Gryphon 4500 scanner is user-friendly, equipped with motion-sensing technology that transitions between handheld and stand modes effortlessly.
Key features:
  • 1 MP optics for enhanced scanning accuracy
  • Bluetooth® wireless technology or narrow band radio communications
  • Wireless charging system for reduced maintenance
  • Omnidirectional reading for quick code capture
  • Motionix™ technology for automatic mode switching
  • Batch Mode capability for versatile data collection

Specifications:
  • Weight: 235 g / 8.29 oz
  • Dimensions: 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in
  • IP52 rating for dust and water resistance
  • Reading performance: 35 IPS, with maximum reading distances varying by code type
  • Operating temperature: 0 to 50 °C / 32 to 122 °F
  • Battery type: Lithium-ion, 3250 mAh with a charge time of 4 hours
  • Warranty: 3-Year Factory Warranty

Características principales

  • Punto de Venta: Sí

  • Color de la funda: Black

  • Conexión: USB

  • Capacidad de Escaneo: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code
  • Dot Matrix

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Depth of Field
  • 4 to 30.0 cm / 0.16 to 11.8 in @ 5 mil Code 39
  • 1.7 to 53.5 cm / 0.6 to 21.0 in @ 10 mil Code 39
  • 3.5 to 23.5 cm / 1.3 to 9.6 in @ 10 mil Data Matrix
  • 3.0 to 35.0 cm / 1.2 to 13.7 in @ 15 mil Data Matrix
  • 4.0 to 82.0 cm / 1.6 to 32.3 in @ 13 mil EAN/UPC
  • 3.5 to 22.0 cm / 1.4 to 8.7 in @ 10 mil QR Code
Scan Pattern
  • Area
  • Omni-directional
Scanner Range Standard Range
Scanning Distance 32.30"
Features
  • Beep
  • Notification LED
  • Grayscale Image Capture
Cable Type Included USB
Field of View (Horizontal) 51°
Field of View (Vertical) 32°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 180°
Motion Tolerance 70 in/s
Image Formats
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light 120000 lux
Drop Specification
  • Withstands repeated drops from 1.5 m / 5 ft onto a concrete surface
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 15 mil
Minimum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color Red
Interfaces/Ports
Host Interface USB
Power Description
Standby Current 115 mA
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Physical Characteristics
Form Factor Fixed Mount
Color Family Black
Product Color Black
Durability
  • Water Resistant
  • Dust Resistant
Weight (Approximate) 1.83 oz
Miscellaneous
Ingress Protection (IP) Rating IP54
Application/Usage
  • Self Service
  • Ticketing
  • Retail
  • Self-checkout
  • Healthcare
