Lectores Newland NLS-FM430L-U

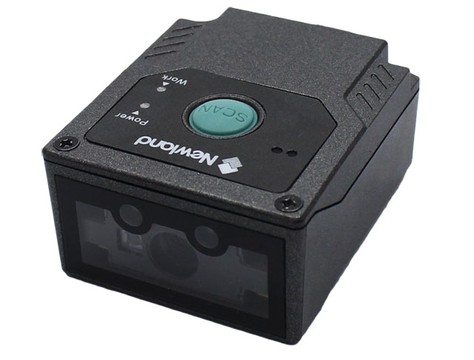

The Newland FM430 Fixed Barcode Scanner is designed for optimal productivity and reliability in various environments. Equipped with advanced **UIMG® technology**, this scanner excels in reading both ID and high-volume 2D barcodes, even from screens protected by films. Its **IP54-rated housing** ensures durability against dust and moisture, while the smart **Automatic Exposure Control** adapts lighting for effective scanning. With a robust construction that withstands drops from 1.5 meters, the FM430 is the perfect solution for businesses seeking efficiency and performance in a compact device.

Key Features:

• IR/Light Triggers: Enhanced sensitivity for quicker scans.
• Automatic Exposure Control (AEC): Adjusts lighting for optimal performance.
• Highly Visible Laser Aimer: Clear aiming pattern, even in bright sunlight.
• 1.5m Drop Resistance: Durable design for tough environments.

Specifications:

• Performance:
• Resolution: 1280*800 CMOS
• Illumination: White LED, Laser diode (650nm)
• Reading distance: 55-360mm (13mil)
• Scan modes: Sense mode, Continuous mode, Level mode, Pulse mode
• Physical:
• Operating Voltage: 5VDC±5%
• Dimensions: 41.5(W)x49.5(D)x24.3(H)mm
• Weight: 56g
• Environmental:
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 70°C
• Humidity: 5% to 95% (non-condensing)
• Drop: 1.5m
• IP Sealing: IP54
• Certifications: FCC, CE EMC, ROHS
