Elo

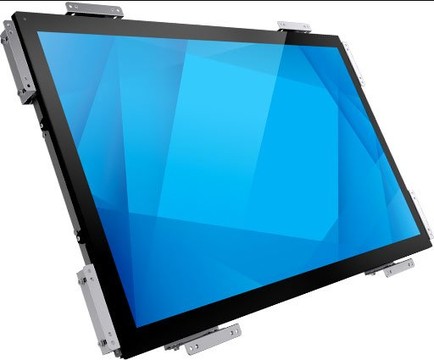

Cartelera Digital Elo E344260

SKU:

E344260

touch monitor (open-frame, 16:9), 107.9 cm (42.5''), Projected Capacitive, multi touch, 1920x1080 pixels, VESA mount, 8ms, brightness: 387cd, contrast: 4000:1, antiglare, USB-C, VGA, HDMI, touch interface: USB, incl.: cable (USB, VGA, HDMI), power cable (EU, UK, US), colour: black
Descripción
ico-plus ico-minus

The Elo 7001LT Digital Signage Display delivers a stunning 70-inch interactive experience that enhances brand engagement across various commercial environments. Its sleek design, featuring a thin profile of just 3.7 inches, is perfect for applications including wayfinding and presentations. With an advanced infrared touchscreen accommodating up to ten simultaneous touches, this display is engineered for intuitive user interaction. Ideal for retail, hospitality, and educational settings, the 7001LT offers bright visuals with a 500 nit LED panel, ensuring visibility even in well-lit areas.


Key Features:
  • Professional-grade hardware with durable tempered glass
  • ADA compliant design for wall mounting
  • Integrated all-in-one computer options with Intel Core i3/i5 processors
  • Multi-user interaction with up to ten simultaneous touches
  • Remote management capability and support for cloud applications
  • Flexible mounting options in portrait, landscape, or tabletop orientations

Specifications:
  • Model: 7001LT
  • Form Factor: Interactive Digital Signage
  • Active Display Area: 60.6" x 33.7" (1538.9mm x 865.6mm)
  • Dimensions: 62.9" x 3.7" x 36.4" (1600mm x 94mm x 925mm)
  • Display Technology: Active matrix TFT LCD with LED backlight
  • Brightness: 500 nits
  • Native Resolution: 1920x1080 (Full HD)
  • Weight: 149.5 lb (67.8 kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Warranty: 3 years standard, with optional extended warranty

Características principales

  • Tocar: Sí

  • Conexión: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 43"
Viewable Screen Size 42.5"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 8 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type Flush Mount
Backlight Technology LED
HDCP Supported Yes
Features
  • Anti-glare
  • Edge-to-Edge Glass Design
  • On-screen Display (OSD)
  • Ambient Light Sensor
Horizontal Frequency 31.50 kHz to 80 kHz
Vertical Frequency 47 Hz to 63 Hz
Operation Hours 24 Hours/7 Days
Ingress Protection (IP) Rating IP65
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Native Contrast Ratio 4,000:1
Brightness 450 Nit
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 40
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
USB Type-C Yes
Total Number of HDMI Ports 2
Power Description
Operating Power Consumption 44.30 W
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 400 x 400
Color Family Black
Product Color Black
Height 23.1"
Width 39.3"
Depth 2.6"
Weight (Approximate) 37.85 lb
Miscellaneous
Package Contents
  • 4363L 42.5-inch LCD Open-Frame Touchscreen
  • Quick Install Guide
  • HDMI 1.4 Cable (Type A plug to Type A plug)
  • VGA Cable (DB-15 male to DB-15 male)
  • USB Cable (Type A plug to Type B plug)
  • RJ45 Wired OSD Remote
  • IEC 60320-C13 to NA Plug
  • Power Cable
  • 8 x Flushmount Brackets
  • 48 x Screws
  • Foam Gasket
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification
  • ENERGY STAR 7.0
  • ENERGY STAR 8.0
Energy Efficiency Compliance Korea E-Standby
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Documentos
ico-plus ico-minus
Documento del producto 4363l.pdf E344260 Documento del producto mod-ids-elo-digital-signane-datasheet-1.pdf MOD-IDS
