Cartelera Digital Elo E103164
E103164
Seleccionar modelo

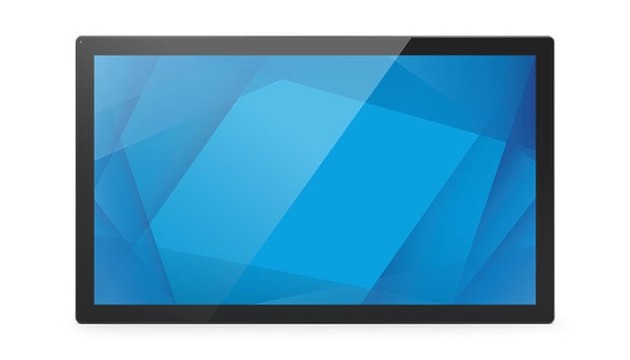

The Elo 7001LT Digital Signage Display delivers a stunning 70-inch interactive experience that enhances brand engagement across various commercial environments. Its sleek design, featuring a thin profile of just 3.7 inches, is perfect for applications including wayfinding and presentations. With an advanced infrared touchscreen accommodating up to ten simultaneous touches, this display is engineered for intuitive user interaction. Ideal for retail, hospitality, and educational settings, the 7001LT offers bright visuals with a 500 nit LED panel, ensuring visibility even in well-lit areas.
Key Features:
- Professional-grade hardware with durable tempered glass
- ADA compliant design for wall mounting
- Integrated all-in-one computer options with Intel Core i3/i5 processors
- Multi-user interaction with up to ten simultaneous touches
- Remote management capability and support for cloud applications
- Flexible mounting options in portrait, landscape, or tabletop orientations
Specifications:
- Model: 7001LT
- Form Factor: Interactive Digital Signage
- Active Display Area: 60.6" x 33.7" (1538.9mm x 865.6mm)
- Dimensions: 62.9" x 3.7" x 36.4" (1600mm x 94mm x 925mm)
- Display Technology: Active matrix TFT LCD with LED backlight
- Brightness: 500 nits
- Native Resolution: 1920x1080 (Full HD)
- Weight: 149.5 lb (67.8 kg)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Warranty: 3 years standard, with optional extended warranty
Características principales
-
Tocar: Sí
-
Conexión: USB, Ethernet
| Technical Information | |
|---|---|
| Panel Technology | Thin Film Transistor (TFT) |
| Operation Hours | 24 Hours/7 Days |
| Display & Graphics | |
|---|---|
| Number of Screens | 1 |
| Viewable Screen Size | 31.50" |
| Display Screen Type | LCD |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 40 |
| Display Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED |
| Maximum LED Life | 5.7 Year |
| Video | |
|---|---|
| Scan Format | 1080p |
| Native Contrast Ratio | 3,000:1 |
| Color Depth | 8-bit |
| Brightness | 400 Nit |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Wireless LAN | Yes |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of USB 2.0 Ports | 2 |
| USB Type-C | Yes |
| Power Description | |
|---|---|
| Input Voltage |
|
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 95% |
| Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| VESA Mount Standard | 400 x 400 |
| Height | 18" |
| Width | 30" |
| Depth | 1.9" |
| Weight (Approximate) | 24.03 lb |
| Miscellaneous | |
|---|---|
| Energy Star | Yes |
