The LVS-9510 is unique in the world of ISO verification due to its ease of use and ability to verify linear (1D) and two-dimensional (2D) codes without any change of equipment. The system automatically determines the symbology and aperture needed to evaluate the code and identifies and highlights trouble spots. The LVS-9510 offers a ?stitching? feature that allows grading of barcodes that are larger than the field of view.
Seleccionar modelo
No se han podido actualizar los precios.
Envío el mismo día
para pedidos realizados antes de las 14:30.
Aprenda más
Secure payment with
Descripción

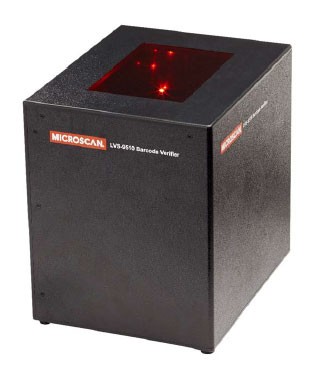

Omron LVS 9510 Barcode Verifier is a cutting-edge, handheld verification system that ensures your barcodes meet stringent ISO, ANSI, GS1, and UDI standards. This versatile tool excels in both linear (1D) and 2D barcode verification without the need for equipment changes. Its user-friendly interface and analytical features allow for rapid problem identification, making it an essential asset for quality control in any industry.
Key features:
Specifications:
Key features:
- **Supports multiple symbologies**, including 1D, 2D, and postal formats.
- **Handles ISO/IEC, ANSI, GS1, and UDI quality standards** for reliable verification.
- **User permissions management** through LVS-95XX software or Microsoft Active Directory.
- **Software upgrade options** such as Multi-Sector and Enhanced Application Identifier Verification (EAIV).
- **Compatible with 15 languages**, with expansion options available.
- **Comes with a NIST-Traceable calibration test card** for accuracy.
Specifications:
- Field of View Options:
- 1.75" (44 mm)
- 3.0" (76 mm)
- 4.0" (102 mm)
- 4.5" (114 mm)
- 6.250" (159 mm)
- Camera: 5.0 megapixel monochrome
- Operating Temperature: 10° to 30° C (50° to 86° F)
- Storage Temperature: 0° to 40° C (32° to 104° F)
- Power Input: 12 VDC @ max. 2.5 A
- Weight: 2.72 kg (6.0 lbs) unpackaged
- Safety Certifications: FCC, CE, UL, ROHS ComPLIANT
Documentos
lvs-9510.pdf MOD-OMRON-LVS-9510
