Unitech

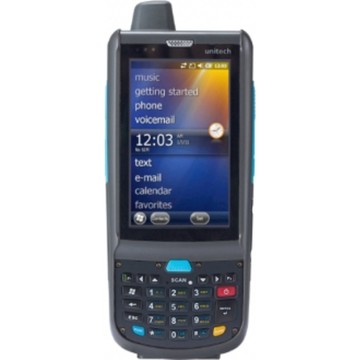

Terminales Portátiles Unitech PA692-98F2UMDG

SKU:

PA692-98F2UMDG

Mobile Computer, Unitech PA692, Windows Embedded Handheld 6.5, GPS, Wi-Fi, Bluetooth, Standard Range, 1D Laser, 512 MB RAM, 512 MB Flash, IP65, Phone-size, Numeric, Battery, USB, Camera, Power Adapter
Descripción
ico-plus ico-minus

The Unitech PA692 Mobile Computer is a rugged, all-in-one device designed for field-based workers in demanding environments. With its advanced 3.75G wireless communication capabilities and powerful industrial-grade processor, this handheld computer enhances productivity and efficiency. The PA692's durable design can withstand multiple drops and is IP65-rated against water and dust, making it a reliable choice for various data collection tasks. Equipped with integrated scanning, RFID, GPS, and a high-resolution camera, it consolidates multiple devices into one compact solution, perfect for businesses looking to stay competitive and streamline operations.


Key features:

  • OS: Windows Embedded Handheld 6.5
  • Processor: 1G MHz industrial-grade TI AM3715
  • Memory: 512MB NAND Flash & 512MB DDR SDRAM
  • Wireless Connectivity: 3.75G, WiFi, Bluetooth, GPS
  • Rugged Design: IP65 rated and designed for 1.5M drop protection
  • All-in-one Functionality: Integrated 1D/2D scanner, RFID reader, and more
  • Camera: 5.0 megapixel with autofocus

Specifications:

  • Weight: 390g with 2200mAh Battery
  • Dimensions: 17.7 cm x 7.4 cm x 4 cm
  • Display: 3.8" WVGA sunlight-readable LCD
  • Battery: 2200 mAh or 4000 mAh options available
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Drop Specification: 1.5m (5 feet)
  • Humidity: Operating relative humidity up to 95%

Características principales

  • Sistema: Windows

  • Robusto: Industrial

  • GPS: Sí

  • Conexión: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Light Source Laser
Barcode Symbology Supported 1D:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved & Std. 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • MSI/Plessey
  • Code 128
  • Toshiba
Drop Specification
  • 1.5m
Processor & Chipset
Processor Manufacturer Texas Instruments
Processor Type ARM
Processor Speed 1 GHz
Memory
Standard Memory 512 MB
Flash Memory 512 MB
Memory Card Slot Yes
Memory Card Supported
  • microSD
  • microSDHC
Maximum Memory Card Size Supported 32 GB
Display & Graphics
Screen Size 3.8"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Color Color
Display Screen Type LCD
Keyboard/Keypad
Number of Keys 26
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g
Bluetooth Yes
Cellular Data Connectivity Technology 3.75G
GPS Yes
Antenna Form Factor External
Interfaces/Ports
USB Yes
Camera
Rear Camera Yes
Rear Camera Resolution 5 Megapixel
Software
Operating System Microsoft Windows Embedded Handheld 6.5 Professional
Battery Information
Battery Capacity 2200 mAh
Battery Included Yes
Physical Characteristics
Height 7"
Width 2.9"
Depth 1.6"
Weight (Approximate) 13.76 oz
Miscellaneous
Certifications & Standards
  • CCX4 Compliant
  • IP65
  • CE
  • FCC
  • BSMI
  • VCCI
  • CCC
  • ISO 9001:2000
  • Wi-Fi Certified
Environmentally Friendly Yes
