Bogen
Speakerphones Bogen BOGEN-ASM1
SKU:
MOD-BOGEN-ASM1

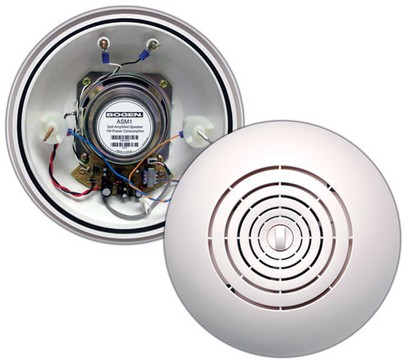

The Bogen ASM1 Amplified Speaker is a surface-mount speaker, designed to typically install in less than a minute. Installation is a simple, three-step process that does not require tools. First, four specially-designed studs pierce the ceiling tile. Second, two custom designed wing nuts secure the speaker to the ceiling. Third, standard wire nuts make the 24V DC power and audio connections directly to the color coded studs. The ASM1 Amplified Speaker is lightweight, durable, and features a lowprofile contemporary design, making it versatile enough to be installed in just about any installation with standard ceiling tiles
Seleccionar modelo
Envío el mismo día
para pedidos realizados antes de las 14:30.
Aprenda más
Secure payment with
Descripción
The Bogen ASM1 Easy Install® Self-Amplified Speaker is the perfect solution for efficient and versatile audio installations. Designed to fit seamlessly in standard ceiling tiles, this lightweight, yet durable speaker is ready to enhance any acoustic environment. With a straightforward three-step installation process, you can mount the ASM1 in less than a minute without any tools. Its contemporary design ensures it blends effortlessly into your decor, while the built-in amplifier provides excellent sound quality, making it ideal for public address applications.
Key features:
Specifications:
Key features:
- 1-watt self-amplified speaker with high intelligibility and sensitivity.
- Quick installation in under a minute with no tools required.
- Front-mounted volume control for easy adjustment and tampering resistance.
- Standard ceiling tile compatibility for surface-mounting with no cutting needed.
- Wide-frequency response of 125 Hz to 15 kHz.
- O-ring seal to minimize sound peaks and eliminate whistling.
- Color-coded connections simplify wiring.
Specifications:
- Power Rating: 1W max
- Frequency Response: 125 Hz - 15 kHz
- Sensitivity: 90 dBspl at 125 mV input (1W @ 1M on axis)
- Supply Voltage: 24V DC
- Dimensions: 9-1/2" diameter x 3" depth
- Weight: 2 lb (shipping weight 3 lb)
- Input Impedance: 2k ohms
- Dispersion Angle: 120° minimum
- Construction: Durable ABS plastic
- Compliance: NFPA National Code 160b and UL-2043
Documentos
asm1.pdf MOD-BOGEN-ASM1
