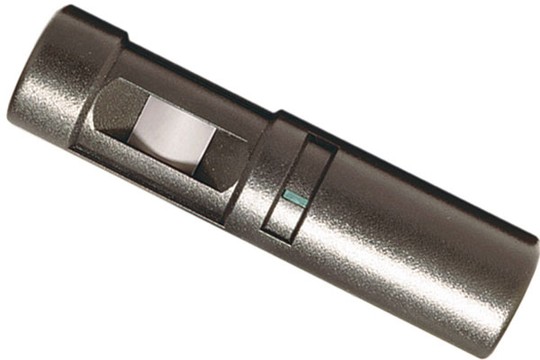

Sensores Bosch BOSCH-DS151I

The Bosch DS151i Access Control Equipment is a cutting-edge solution designed for Request-to-Exit (REX) applications. With its advanced motion detection capabilities, this device effectively signals your access control system or door control unit, ensuring safety and ease of use. Whether mounted on the wall or ceiling, the DS151i provides excellent coverage patterns, adaptable for individual or double door setups. This reliable system features selectable modes for various operating conditions, allowing comprehensive monitoring of exits without compromising security.

• Single or double door use
• Wall or ceiling mountable
• Internal vertical pointability
• Wrap-around coverage pattern
• Selectable relay trigger mode
• Selectable fail safe/fail secure modes

• Alarm Output: 2 Form "C" relay contacts
• Dimensions (HxWxD): 1.5 in. x 6.25 in. x 1.5 in. (3.8 cm x 15.9 cm x 3.8 cm)
• Operating Temperature: -20°F to +120°F (-29°C to +49°C)
• Material: High impact ABS plastic enclosure
• Indicators: 1 activation LED
• Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies from 26 MHz to 1000 MHz at 50 v/m.
• Mounting Location: Surface mount on wall or ceiling
• Power Requirements: 12 or 24 VAC, 12 or 24 VDC, 26 mA @ 12 VDC
• Relay Latch Time: Adjustable to 60 seconds
• Timer Mode: Programmable resettable or non-resettable
• Hardware Options: TP160/TP161 Trim Plate available in light gray or black
