Power Supply Altronix ALTRONIX-AL175ULX

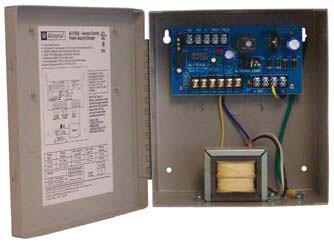

The Altronix AL175ULX Power Device is a versatile power supply/charger designed to convert 115VAC / 60Hz input into dual outputs of either 12VDC or 24VDC, making it ideal for access control and fire alarm systems. With its **intelligent design**, it features PTC protection, ensuring safety while delivering up to 1.75 amps of continuous supply current. The AL175ULX variant comes with a larger enclosure, providing more space for additional components and smooth integration into various security setups. Ensure uninterrupted operation with automatic switchover to the stand-by battery during AC failures.

Key features:

• Dual output options: 12VDC or 24VDC selectable.
• 1.75 amps continuous supply current.
• Class 2 Rated power limited outputs.
• Filtered and regulated: ensures stable performance.
• Short circuit and thermal overload protection for added safety.
• Auxiliary relay output with Form C contacts.
• AC fail supervision with Form C contacts.
• Easy-to-read AC input and DC output LED indicators.

Specifications:

• Supply Current: 12VDC or 24VDC @ 1.75 amps.
• Maximum Charge Current: 400mA.
• Product Weight:
  • AL175UL: 5.2 lbs.
  • AL175ULX: 8.4 lbs.
• Shipping Weight:
  • AL175UL: 5.7 lbs.
  • AL175ULX: 9.4 lbs.
• Agency Approvals: UL, MEA, CUL, California State Fire Marshal Approved.
• Dimensions: 8.5"H x 7.5"W x 3.75"D.
