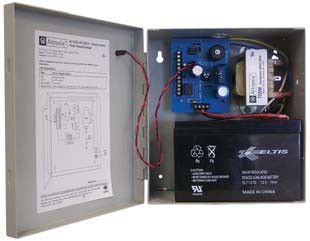

Power Supply Altronix ALTRONIX-AL125UL
SKU:
MOD-ALTRONIX-AL125UL
The AL125UL Power Supply-Charger is a power-limited power supply/charger that will convert 115 VAC 50/60Hz input into two individually PTC-protected 12VDC or 24VDC outputs. It is intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with fire alarm control panels. It has a filtered and electronically regulated output. It is a built-in charger for sealed lead acid or gel type batteries. Includes power supply, transformer and enclosure.
Seleccionar modelo
Envío el mismo día
para pedidos realizados antes de las 14:30.
Aprenda más
Secure payment with
Descripción
The **Altronix AL125UL Power Device** is a robust power supply and charger, designed to convert 115VAC input into two PTC protected 12VDC or 24VDC outputs. Ideal for access control applications, this UL-listed device also interfaces seamlessly with Fire Alarm Control Panels, ensuring safety and compliance. With built-in battery backup capabilities, it automatically switches to standby batteries during AC failure, making it a dependable choice for critical systems.
Key Features
Specifications
Key Features
- Flexible Output Options: Two individually PTC protected 12VDC or 24VDC outputs.
- Battery Backup: Built-in charger with automatic switch over in case of AC failure.
- LED Status Indicators: Easily monitor power supply and unit status.
- Supervised Fire Alarm Disconnect: Ensures safety protocols are maintained during emergencies.
Specifications
- Input: 115VAC 50/60 Hz, 0.6 amp (AL125UL, AL125ULX), 24VAC @ 40VA (AL125ULP, AL125ULE).
- Output:
- Two 12VDC or 24VDC outputs.
- 1 amp total supply current @ 12VDC or 24VDC (AL125UL & AL125ULX).
- 0.5 amp total supply current @ 24VDC (AL125ULP & AL125ULE).
- Battery Backup: Maximum charge current: 400mA, supports sealed lead-acid or gel type batteries.
- Enclosure Dimensions: 8.5"H x 7.5"W x 3.5"D for models AL125UL, AL125ULP, AL125ULE; 13"H x 13.5"W x 3.25"D for AL125ULX.
- Agency Listings: UL Listed for Access Control Systems (UL294), MEA NYC Department of Buildings Approved.
