Altronix

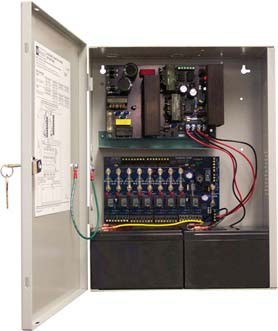

Power Supply Altronix ALTRONIX-AL1024ULACM

SKU:

MOD-ALTRONIX-AL1024ULACM

The AL1024ULACM Power Supply-Charger converts an 115 VAC 60Hz input into eight (8) independently controlled 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. AL1024ULACM Power Supply-Charger will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Descripción
ico-plus ico-minus

The Altronix AL1024ULACM Power Device is the ultimate solution for access control systems, converting a standard 115VAC 60Hz input into eight independently controlled 24VDC outputs. With a robust continuous supply of 10 amps, it efficiently powers a variety of access hardware, including mag locks and electric strikes, ensuring flexibility in Fail-Safe or Fail-Secure operations. Designed for comprehensive functionality, this power supply includes features for emergency egress and alarm monitoring, making it a vital component for any security system.


Key Features:

  • **Eight independently controlled outputs** for versatile access control integration.
  • **Fail-Safe or Fail-Secure modes** to accommodate specific operational needs.
  • **Programmable fire alarm disconnect** feature for tailored security management.
  • **Built-in charger** for reliable battery support during AC failures.
  • **UL Listed** for access control systems, ensuring compliance with safety standards.

Specifications:

  • **Input:** 115VAC 60Hz, rated at 4.4 amp.
  • **Output:** 24VDC @ 10 amp supply current.
  • **Trigger Inputs:** Eight (8) normally open (NO) or open collector inputs.
  • **Relay Outputs:** Eight (8) form "C" rated at 5 amp (AL1024ULACM).
  • **Fuse Ratings:** Fuses rated @ 3.5 amp (AL1024ULACM).
  • **Outputs Protection:** Short circuit and thermal overload protection.
  • **LED Indicators:** Red LEDs indicate active outputs; green LED for FACP disconnect.
  • **Dimensions:** 15.5"H x 12"W x 4.5"D.
  • **Enclosure Accommodates:** Up to two (2) 12AH batteries.
