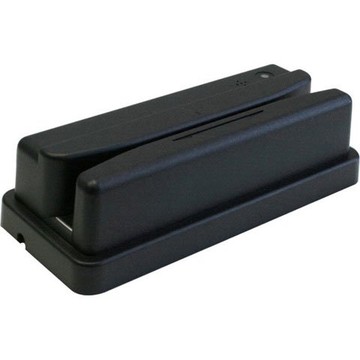

Lectores de Tarjetas Unitech MS146-IUCB0M-SG

The Unitech MS146 Barcode Card Reader is a versatile solution designed for time control, security access, and attendance monitoring. With its robust IP54-rated housing, this reader ensures optimal performance even in challenging industrial environments. The wide slot accommodates various card sizes, while its excellent read rates and 0.15mm resolution make it perfect for high-density labels. Whether mounted on a desk or a wall, the MS146 seamlessly connects with all popular devices, making it an economically efficient choice for any workspace.

• Sealed optical system with IP54 rugged housing
• Wide bar code slot for flexible reading angles
• Multi-directional installation capabilities
• User configurable via PC programming
• Compatible with all popular computers and devices
• Versatile application for desktop or wall-mounting
• Suitable for various card dimensions and printing qualities
• Fast scan rate of 50 mm to 700 mm/sec

• Dimensions: 128 mm (L) x 53 mm (W) x 33 mm (H)
• Weight: 180 g
• Power consumption: 35 mA for TTL 5V DC; 70mA for Decoded version
• Beep sound volume: >70dB
• Operating Temperature: 0° to 50°C
• Storage Temperature: -20° to 60°C
• Humidity: 0% to 95% RH non-condensing
• Mechanical Shock: 5 ft. (1.5 m) drop on concrete
• Scan Speed: 700mm/Sec
• MTBF: 25000 Hours
• Supported Symbologies: Code 39, EAN-13, UPC-A, and more
• Interfaces: USB, Keyboard wedge, RS232, TTL (undecoded)
