Zebra

Lectores Portátiles Zebra RS51B0-LBSNWR

SKU:

RS51B0-LBSNWR

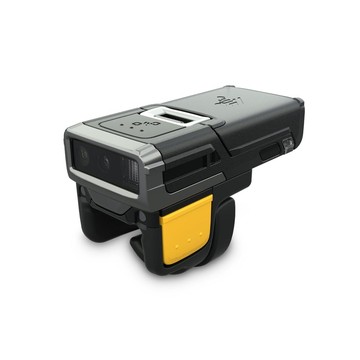

Need hands-free barcode capture without slowing the task down? The Zebra RS5100 Featherlite Wearable Scanner is a lightweight, rugged Bluetooth ring scanner with SE4710 1D and 2D decoding, designed for fast point-and-shoot scanning in demanding work environments. Weighing just 70 g, it combines wearable convenience with reliable performance and flexible wearing options for greater comfort and productivity.
Descripción
ico-plus ico-minus
Presentamos el Escáner de Anillo Bluetooth RS5100 de Zebra, el escáner ligero y resistente de un solo dedo que puedes llevar a todas partes. El RS5100 tiene un diseño industrial cómodo, ligero pero resistente, ideal para usar en casa o en cualquier lugar de tu instalación. Múltiples LED en la parte posterior del RS5100 pueden parpadear para indicar si los trabajadores deben girar a la izquierda o a la derecha, o continuar recto. Empareja el RS5100 con prácticamente cualquier dispositivo móvil de clase empresarial de Zebra para desbloquear todas las funciones. Con soporte Bluetooth de Clase 1, puedes moverte hasta 300 pies/91.44 m del dispositivo host, ideal cuando se empareja con computadoras montadas en vehículos o un dongle en una laptop u otro dispositivo. Con NFC, los trabajadores pueden simplemente tocar el RS5100 en dispositivos Zebra habilitados para NFC, como el Computador Portátil WT6000 y el Computador Móvil de Mano TC52.

Características principales

  • Robusto: Industrial

  • Conexión: Bluetooth

  • Capacidad de Escaneo: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
Scan Engine Model SE4710
Light Source Laser
Scan Pattern Omni-directional
Scanner Range Standard Range
Field of View (Horizontal) 42°
Field of View (Vertical) 28°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Drop Specification Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39) 4 mil
Maximum Element Resolution (Code 39) 20 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 5 mil
Network & Communication
Bluetooth Yes
Power Description
Power Source Battery
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 480 mAh
Physical Characteristics
Form Factor Wearable
Rugged Yes
Product Color
  • Silver
  • Black
Width 1.1"
Depth 0.8"
Length 2.4"
Weight (Approximate) 2.47 oz
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage
  • Warehouse
  • Manufacturing
  • Hospitality
  • Distribution
  • Retail
  • Transportation
  • Logistics
Environmentally Friendly Yes
Country of Origin China
Warranty
Limited Warranty 1 Year
Documentos
ico-plus ico-minus
Documento del producto mod-rs5100-zebra-wearable-readers-datasheet.pdf RS51B0-LBSNWR Documento del producto mod-rs5100-zebra-wearable-readers-quick-guide-1.pdf RS51B0-LBSNWR Documento del producto mod-rs5100-zebra-wearable-readers-user-manual.pdf RS51B0-LBSNWR Documento del producto rs5100-specification-sheet-en.pdf RS51B0-LBSNWR Documento del producto rs5100.pdf MOD-RS5100
