Honeywell

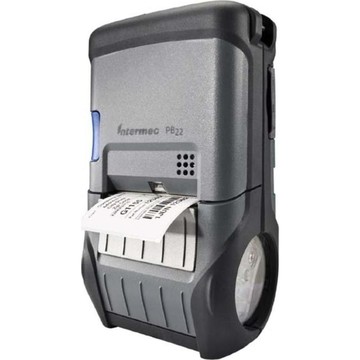

Impresoras de Etiquetas Honeywell PB22A20804000

SKU:

PB22A20804000

Compact and lightweight, the industry's fastest 2 inch rugged mobile label printer integrates seamlessly with Intermec mobile computers and software to deliver secure, high performance printing in the most demanding retail and warehouse applications
Descripción
ico-plus ico-minus

The Intermec PB22 Portable Barcode Printer is engineered for speed and durability, making it the ideal choice for demanding environments such as warehousing and retail. Offering print speeds of 4 inches per second, it minimizes the time-to-first-label while maintaining high-quality output. Thanks to its rugged design, with a 5-foot drop rating and IP54 sealing, the PB22 withstands harsh conditions, ensuring longevity and reliability. It seamlessly integrates with Intermec mobile devices and offers versatile connectivity options, making it an indispensable tool for enhancing productivity and efficiency in mobile printing applications.


Key features:

  • Ultra-fast print speeds of 4ips for quick label delivery.
  • Compatibility with linerless media options for increased efficiency.
  • Rugged design certified for 5-foot drops and IP54 rating.
  • Remote monitoring through Intermec SmartSystems®.
  • Multiple wireless and wired communication options.

Specifications:

  • Physical Characteristics:
    • Width: 101 mm (4 in)
    • Height: 176 mm (6.9 in)
    • Depth: 71 mm (2.8 in)
    • Weight: 678 g (23.9 oz)
  • Print Technology:
    • Type: Direct thermal
    • Resolution: 203 dpi (8 dots/mm)
    • Speed: 4ips (101.6mm/sec)
  • Communication Options:
    • RS-232 Serial
    • USB v.2.0
    • Bluetooth® (v2.0, Class 1)
    • 802.11b/g
  • Operating Environment:
    • Temperature: -15°C to 50°C (5°F to 122°F)
    • Humidity: 10 to 90% (non-condensing)
  • Warranty: One year with optional Medallion service packages.

Características principales

  • Robusto: Industrial

  • Formato de Equipos: Mobile

  • Punto de Venta: Sí

  • Conexión: Serial, USB

  • Tecnología de Impresión: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.20"
Print Technology Direct Thermal
Memory
Standard Memory 16 MB
Flash Memory 64 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Wireless LAN Yes
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Linerless
  • Receipt
  • Label
  • Tag
  • Synthetic Media
Maximum Roll Diameter 2.25"
Label Core Size 0.75"
Fonts & Emulation
Language Emulation
  • IPL
  • Fingerprint
  • ZPL II
  • ESC/P
Power Description
Input Voltage 7.2 V DC
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Rechargeable Yes
Battery Capacity 2250 mAh
Physical Characteristics
Form Factor Portable
Height 6.9"
Width 4"
Depth 2.8"
Miscellaneous
Package Contents
  • PB22 Receipt Printer
  • Hand Strap
  • Shoulder Strap
  • Belt Clip
  • Protective Case
  • Cart Mount
  • Vehicle Mount
  • Battery Pack
  • Four Bay Battery Charger
  • AC Adapter
  • AC Power Cord
  • Truck Power Cable Adapter
  • Truck Power Cable
  • Forklift Power Cable
  • Serial Cable
Cables Included
  • RS-232
  • AC
Power Adapter Included Yes
Platform Supported PC
Warranty
Limited Warranty 1 Year
