Bixolon

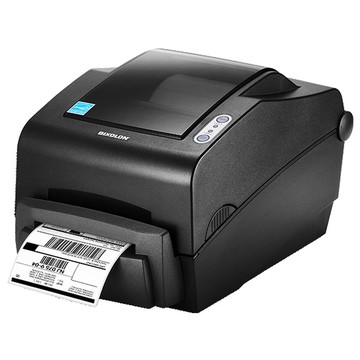

Impresoras de Etiquetas Bixolon SLP-TX400G

SKU:

SLP-TX400G

label printer, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 108 mm, roll diameter (max.): 130mm, speed (max.): 178 mm/s, USB (type B), RS232 (9 pin), parallel, emulation: EPL, ZPLII, SLCS, RAM: 64 MB, Flash: 128 MB, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: dark grey
Descripción
ico-plus ico-minus
The Bixolon SLP-TX400 Barcode Label Printer is the ideal solution for retail, healthcare, warehouse, and logistics needs. Designed for 4-inch wide printing and equipped with direct thermal and thermal transfer capabilities, this printer offers impressive print speeds of up to 7 inches per second (178mm/sec). The **Smart Media Detection** feature simplifies operation by automatically recognizing various label types, making it easy to switch between settings. With robust emulation support and high compatibility, the SLP-TX400 is a reliable choice to streamline your label printing processes.

Key Features
  • Powerful Printing Performance: Speeds up to 7ips (178mm/sec) with fast data processing.
  • Smart Media Detection: Automatically detects label types for easy loading.
  • Enhanced Connectivity: High-speed USB, Ethernet, and optional WLAN support.
  • User-Friendly Options: Includes easy installation auto-cutter and real-time clock.
  • Label Design Program: Comes with Label Artist™ for comprehensive label creation.

Specifications
  • Print Method: Direct Thermal and Thermal Transfer
  • Print Speed: Max. 7ips (203DPI) / 5ips (300DPI)
  • Print Width: Max. 108 mm
  • Papers Supported: Gap, Notch, Black Mark, Continuous, Fan-Fold
  • Roll Width: 25-116mm (ID: 25.4-38.1mm / OD: 130mm)
  • Ribbon: 110mm width, 300m length
  • Interface: Serial, Parallel, USB V2.0HS, Ethernet/WLAN
  • Memory: Flash 128MB / RAM 64MB DDR2
  • Operating Temp: 5-40°C | Storage Temp: -20-60°C
  • Weight: 28 kg | Size: 214 x 310 x 195 mm

Características principales

  • Formato de Equipos: Desktop

  • Color de la funda: Grey

  • Conexión: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 7 in/s
Maximum Print Resolution (dpi) 230
Maximum Print Width 4.25"
Barcode Symbology Supported
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • RSS14 Limited
  • RSS14 Stacked
  • RSS14 Truncated
  • Standard 2 of 5
  • UPC-A
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC/EAN 128
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • MSI-3
  • German Post Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • Aztec Code
Application/Usage Desktop
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 64 MB
Memory Technology DDR2 SDRAM
Flash Memory 128 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Notch
  • Continuous Paper
  • Fanfold
Media Size 4.33" x 11.81"
Media Sensor
  • Cover Open Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 7.87 mil
Maximum Label Width 4.25"
Maximum Label Length 39.37"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation
  • SLCS
  • BPL-E
  • BPL-Z
Power Description
Input Voltage 24 V DC
Physical Characteristics
Color Family Gray
Product Color Gray
Height 7.7"
Width 8.4"
Depth 12.2"
Weight (Approximate) 6.17 lb
Warranty
Limited Warranty 1 Year
Documentos
ico-plus ico-minus
Documento del producto mod-slp-tx400-bixolon-label-printer-datasheet.pdf SLP-TX400G Documento del producto mod-slp-tx400-bixolon-label-printer-user-manual.pdf SLP-TX400G Documento del producto slp-tx400.pdf SLP-TX400G Documento del producto mod-slp-tx400-bixolon-label-printer-datasheet.pdf MOD-SLP-TX400 Documento del producto mod-slp-tx400-bixolon-label-printer-user-manual.pdf MOD-SLP-TX400
