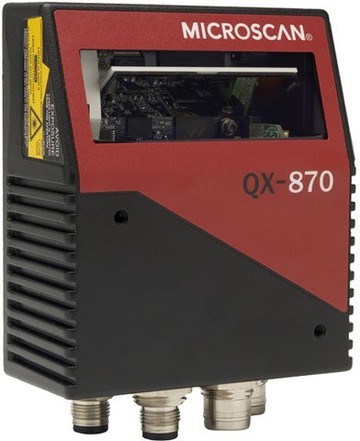

The Microscan QX-870 laser scanner partners the latest technologies in barcode reading and connectivity into an easy to use solution for barcode track, trace and control applications. Simple to set up and deploy, it features a programmable sweeping raster to read multiple codes, in varying locations, even if they are damaged or misaligned. With plug and play setup and the most aggressive decode algorithms available, the QX-870 an ideal laser scanner for any industrial application.
Seleccionar modelo
No se han podido actualizar los precios.
Envío el mismo día
para pedidos realizados antes de las 14:30.
Aprenda más
Secure payment with
Descripción
The Microscan QX-870 Fixed Barcode Scanner is a cutting-edge solution for barcode tracking, tracing, and control applications in various industrial environments. User-friendly and easy to deploy, this scanner features a programmable sweeping raster that reads multiple codes, even those that are damaged or misaligned. With aggressive decoding capabilities and a range of up to 30 inches, the QX-870 ensures exceptional performance, making it ideal for automotive assembly, packaging, and electronics production.
Key Features:
Specifications:
Key Features:
- 300 to 1400 scans per second for efficient processing
- IP65 enclosure for protection against dust and water
- EZ Button for simple setup without a computer
- Optional Embedded Ethernet for high-speed communication
- X-Mode Technology enhances decoding of damaged or poorly printed codes
Specifications:
- Height: 4.29" (109 mm)
- Width: 3.74" (95 mm)
- Depth: 1.76" (45 mm)
- Weight: 16 oz. (453 g)
- Operating Temperature: 0° to 50° C (32° to 122° F)
- Storage Temperature: -50° to 75° C (-58° to 167° F)
- Communication Interfaces: RS-232/422/485 and Ethernet
- Laser Type: Laser diode with 655 nm wavelength
- Read Range: 1 to 30" (25 to 762 mm)
Documentos
qx-870.pdf MOD-MICROSCAN-QX-870
