Honeywell

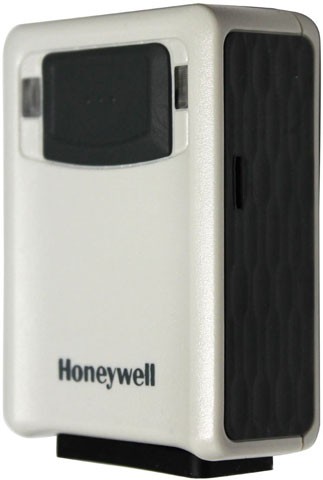

Honeywell Vuquest FlexScan 3320g Fixed barcode scanner Area-imaging, KBW/RS-232/USB, IP53, 43cm, Ivory, 1D/PDF417/2D

SKU:

3320G-5USBX-0

Honeywell Vuquest 3320g Barcode Scanner (variant: Honeywell Vuquest FlexScan 3320g). A compact, reliable barcode scanning solution from Honeywell designed for general-purpose 2D imaging and data capture applications. Suitable for point-of-sale, front-office, and light industrial environments where a small-footprint imager is preferred. Attributes: scanner_type supported_barcode_symbologies connectivity_interfaces supported_symbologies interfaces form_factor maximum_reading_distance ingress_protection drop_resistance sensor_resolution imaging_technology scan_field_width minimum_bar_width scan_range_type interface cable_length kit_type power_consumption_typical power_consumption_standby operating_voltage operating_temperature operating_humidity protection_class_ip_rating drop_resistance_height aiming_type scan_range connectivity external_i_o_support
Description
ico-plus ico-minus
The Honeywell Vuquest 3320g Barcode Scanner is a compact, area-imaging solution designed to deliver exceptional performance in a sleek, portable package. Whether scanning 1D, PDF, or 2D barcodes, this scanner excels in reading codes on various surfaces, including reflective mobile screens. Its innovative technology reduces the glare commonly associated with imaging-based scanners, while its robust design makes it ideal for retail and industrial environments. The Vuquest 3320g enhances workflow with flexible licensing options, making it a perfect fit for businesses looking to future-proof their scanning capabilities.

Key Features
  • Compact and Ergonomic Design: Lightweight and easily portable for maximum convenience.
  • Advanced Imaging Technology: Operates flawlessly on reflective surfaces without needing additional hardware.
  • TotalFreedom™ 2.0: Enables loading of custom decoding and formatting directly onto the scanner.
  • Laser-Free Aiming: Ensures a safe operating experience while improving scan accuracy.
  • Multi-Interface Support: Automatic detection of various interfaces facilitates seamless integration.


Specifications
  • Mechanical:
    • Dimensions: 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in)
    • Weight: 77 g (2.7 oz)
    • Termination: 15-POS D-Sub connector
  • Electrical:
    • Input Voltage: 5VDC ± 0.25V
    • Operating Power: 2.3W (450mA @ 5V)
    • Standby Power: 0.45W (90mA @ 5V)
    • Interfaces: USB, RS-232, Keyboard Wedge
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Humidity: 5% to 95% relative humidity, non-condensing
    • Drop Protection: Designed to withstand 1.5 m (5 ft) falls
    • Environmental Sealing: IP53
  • Scan Performance:
    • Scan Pattern: Area Image (838 x 640 pixel array)
    • Motion Tolerance: >270 cm/s (106 in/s)
    • Decode Capability: 1D, PDF, 2D, Postal, and OCR symbologies
  • Warranty: Two-year factory warranty

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Range: Short Range

  • Connectivity: Corded

  • Connection: USB, RS232

  • Scanner Capability: 2D, Imager, 1D

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document 3320g.pdf 3320G-5USBX-0 Product document 3320g.pdf MOD-VUQUEST-3320G
