Datalogic

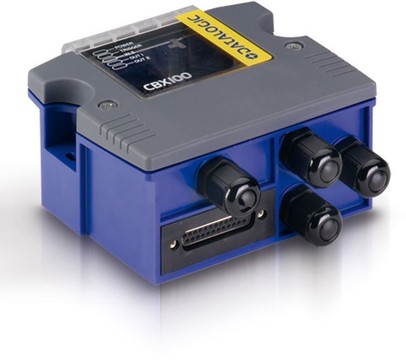

CBX100LT CONN. BOX COMPACT LOW

SKU:

93A301069

CBX100LT Conn. Box Compact Low Temp. Priced per unit. 5 week lead time.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic CBX100LT Compact Connection Box is an industrial connectivity device designed for system integrators and automation engineers who install, configure, and maintain Datalogic Automation 1D/2D code readers in manufacturing, shop floor, and warehousing environments. Acting as the standard connectivity interface for Datalogic Automation's scanner lineup, the CBX100LT simplifies cabling through pinout standardization and accessible spring clamps, while through-hole mounting and optional DIN rail or Bosch profile adapters accelerate physical installation. Its IP65 (NEMA 4) protection class and an extended operating temperature range down to -35°C (-31°F) — made possible by its specific plastic and rubber materials — make it particularly suited to demanding cold-storage or outdoor industrial settings. A modular architecture supports optional fieldbus modules including Profibus, DeviceNet, Ethernet TCP/IP, and more, enabling flexible network integration.
Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document cbx-series.pdf 93A301069 Product document cbx-series.pdf MOD-DATALOGIC-CBX-SERIES
FAQs
ico-plus ico-minus
What industrial environments is the Datalogic CBX Series connection box rated for, and what temperature range does it support?
The CBX Series carries an IP65 (NEMA 4) protection rating, making it suitable for manufacturing, shop floor, and warehousing environments. The standard CBX100 and CBX500 models operate from 0 to 50 °C (32 to 122 °F), while the CBX100LT variant extends the lower limit to -35 °C (-31 °F) through specific plastic and rubber materials.
Which Datalogic code readers are compatible with the CBX100 connection box in this series?
The CBX100 is compatible with the DS2100N, DS2400N, DS4800, DS6300, DS6400, DX6400, DS8100A, and DX8200A code readers, among others listed in the product documentation.
What fieldbus and network connectivity options does the Datalogic CBX Series support?
Through its optional module architecture, the CBX Series provides connectivity to Ethernet TCP/IP, Profibus, DeviceNet, Ethernet/IP, CANopen, Profinet, CC-Link, and Modbus TCP networks, among other common fieldbus systems.
What are the power requirements and consumption figures for the Datalogic CBX Series?
The CBX Series accepts a power supply of 10 to 30 VDC and draws a maximum of 2.5 W.
What mounting and installation options are available for the Datalogic CBX Series?
The box includes accessible through-holes for mounting screws without opening the enclosure, and optional adapters are available for DIN rail mounting and Bosch profile fixing to speed up installation.
Does the Datalogic CBX Series include any display or diagnostic indicators to support troubleshooting?
Yes, the series features a 20 x 4 character multilanguage display with a 3-key keypad, plus diagnostic LED indicators for Power On, Polarity Error, Trigger, IN2, OUT1, and OUT2.
