Zebra

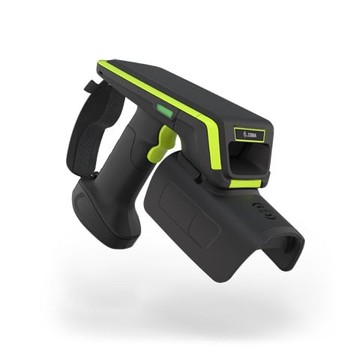

Zebra RFD90, RFID, Wi-Fi 6, Bluetooth 5.3, Long Range Antenna, 2D, SE4850

SKU:

RFD9091-G60G700-US

The SE4850 extended range scan engine fitted to the Zebra RFD9091-G60G700-US sets this UHF RFID sled apart within the RFD90 family, pairing that long-range barcode engine with a linear polarized Yagi-style antenna capable of reading RFID tags at distances up to 75 feet (22.9 meters). A read rate of 1,300 tags per second supports rapid inventory counts, while the tri-function user-programmable trigger provides direct access to RFID reading and barcode scanning in a single gun-form device. Integrated Wi-Fi 6 enables over-the-air firmware and configuration updates without attaching a host device, and Bluetooth 5.3 connects to Android, iOS and Windows devices via NFC tap to pair, pair by camera or Scan-To-Connect. The 7,000 mAh battery sustains extended shifts, and dual IP65 and IP67 sealing combined with a 6-foot (1.8-meter) drop specification to concrete make the RFD9091-G60G700-US suited to manufacturing, transportation and logistics environments. USB connectivity is standard, and the unit is TAA compliant.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra RFD90 Ultra-Rugged UHF RFID Sled is an enterprise-grade mobile RFID reader designed for operations teams in manufacturing, transportation and logistics, warehousing, retail, and government environments where speed, accuracy, and durability are non-negotiable. The sled delivers a read rate of 1,300+ tags/sec and is available in a standard-range model reaching ~22 ft./~6.7 m or a long-range model reaching ~75 ft./~22.9 m, dramatically reducing the number of scanning passes needed for large-scale inventory and asset tracking. Dual IP65 and IP67 sealing combined with a 6 ft./1.8 m drop-to-concrete specification and an operating temperature range of -4°F to 131°F/-20°C to 55°C keep the sled productive in the harshest industrial conditions. Bluetooth 5.3 and built-in Wi-Fi 6 enable seamless pairing with Zebra mobile computers and third-party smartphones, while supporting over-the-air device management without requiring physical contact with every unit.

Main Features

  • RFID: Yes

  • Rugged: Industrial

  • Range: Long Range

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Frequency Band Type UHF
Wireless LAN Yes
Interfaces/Ports
USB Yes
Physical Characteristics
Product Color
  • Midnight Black
  • Industrial Green
Form Factor Gun
Miscellaneous
TAA Compliant Yes
Documents
ico-plus ico-minus
Product document rfd90.pdf RFD9091-G60G700-US Product document rfd90.pdf MOD-RFD90
