Zebra

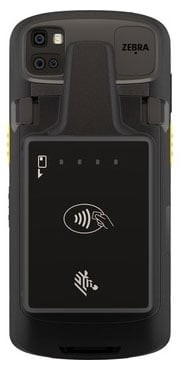

Zebra PD20-1B000WW-00 Card Readers

SKU:

PD20-1B000WW-00

Card Readers, Zebra, Pd20 Credit Card Reader, Scr Certified (Non Zebra Pay)
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra PD20 Secure Card Reader is an add-on payment module designed for retail, hospitality, transportation, logistics, and field services organizations that need to accept card payments away from a fixed checkout. It attaches directly to compatible Zebra mobile computers and tablets — including the TC52x, TC57x, TC53, TC58, TC73, TC78, and ET40/ET45 8-inch tablets — by replacing the existing battery door, turning those devices into fully functional mobile POS stations. The PD20 supports tap, swipe, and insert card modalities via NFC, a Smart Card reader, and a triple-track bi-directional Magnetic Stripe Reader, and is EMV Level 2 and PCI PTS 6.x certified for Visa, Mastercard, American Express, Discover, UnionPay, and Interac. Power and data are delivered through the host device's USB port, and the integrated rechargeable LiPo battery provides 10-plus hours of operation — sufficient for the longest shift.
Technical Specifications
ico-plus ico-minus
Miscellaneous
Compatibility Zebra PD20 Credit Card Reader
Documents
ico-plus ico-minus
Product document pd20.pdf MOD-ZEBRA-PD20
FAQs
ico-plus ico-minus
Which Zebra mobile computers and tablets are compatible with the Zebra PD20 Secure Card Reader?
The PD20 is compatible with the TC52x, TC57x, TC52ax, TC53, TC58, TC73, and TC78 Zebra mobile computers, as well as the ET40 8 in. and ET45 8 in. Zebra tablets.
What card payment methods does the Zebra PD20 support, and which card brands are accepted?
The PD20 supports tap, swipe, and insert transactions via NFC, a Smart Card reader, and a triple track bi-directional Magnetic Stripe Reader. It accepts Visa, Mastercard, American Express, Discover, and UnionPay.
What security certifications does the Zebra PD20 carry?
The PD20 is PCI PTS 6.x certified and holds EMV Level 1, EMV Level 2, and EMV Level 1 Contactless certifications, along with CE and FCC marks.
How long does the Zebra PD20 battery last, and how does it connect to the host device?
The PD20's rechargeable LiPo battery provides 10+ hours of power, and it connects to the host Zebra device through USB 2.0, receiving DC 5 V through the USB port or contact pads.
What are the physical dimensions and operating conditions of the Zebra PD20?
The PD20 measures 2.3 in. W x 3.1 in. H x 0.6 in. D and weighs 2.5 oz. It operates in temperatures from 14 °F to 104 °F and has been drop tested to 4 ft. onto vinyl tile.
What is included in the box when purchasing the Zebra PD20?
The box contains the Card Reader device.
