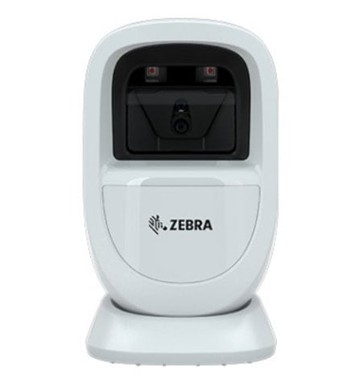

DS9308 Hands-Free Scanner
DS9308-SRWU2100AZW
Select model
The Zebra DS9308 Barcode Scanner combines advanced technology with a compact design, making it ideal for space-constrained retail environments such as convenience stores and trendy boutiques. Engineered for all-day reliability, this scanner captures both 1D and 2D barcodes effortlessly, ensuring speedy checkout and enhanced customer satisfaction. Its rapid-fire scanning ability and intelligent adaptive illumination streamline operations, while built-in features like document capture and anti-theft tag deactivation eliminate extra steps at the point of sale. This little scanner delivers big functionality, making it a must-have for businesses aiming to optimize their service.
Key features:
- Compact Design: At home in any retail environment with a near-zero footprint.
- Advanced Scanning: Captures 1D and 2D barcodes, including damaged and low-contrast codes.
- Rapid Scanning: Swipe speeds up to 50% faster than competitors.
- Adaptive Illumination: Automatically adjusts LEDs for optimal visibility.
- Durable Build: Survives drops, bumps, and spills with IP52 sealing.
Specifications:
- Dimensions: 5.7 in. H x 3.4 in. W x 3.3 in. D (14.5 cm H x 8.6 cm W x 8.3 cm D)
- Weight: 11.2 oz. / 318 g
- Operating Voltage: 4.5 to 5.5 VDC
- Scan Speed: Up to 120 in./305 cm per second
- Image Sensor: 1280 x 800 pixels
- Environmental Sealing: IP52
- Drop Specification: Withstands drops from 5 ft./1.5 m
- Supported Interfaces: USB, RS232, Keyboard Wedge
- Warranty: 3 years against defects
Main Features
-
Connection: Serial, USB
-
Scanner Capability: 2D, Imager
| Technical Information | |
|---|---|
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported |
1D:
2D:
OCR:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Scanning Distance | 11" |
| Field of View (Horizontal) | 52° |
| Field of View (Vertical) | 33° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 120 in/s |
| Image Formats |
|
| Maximum Ambient Light | 107700 lux |
| Drop Specification |
Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 20 mil |
| Minimum Element Resolution (DataMatrix) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | Red |
| Interfaces/Ports | |
|---|---|
| Host Interface |
|
| Power Description | |
|---|---|
| Input Current | 335 mA |
| Standby Current | 135 mA |
| Environmental Conditions | |
|---|---|
| Operating Temperature | 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
|---|---|
| Form Factor | Hands-free |
| Product Color | Alpine White |
| Height | 5.7" |
| Width | 3.4" |
| Depth | 3.3" |
| Weight (Approximate) | 11.22 oz |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
ds9300.pdf DS9308-SRWU2100AZW
ds9300.pdf MOD-DS9300
