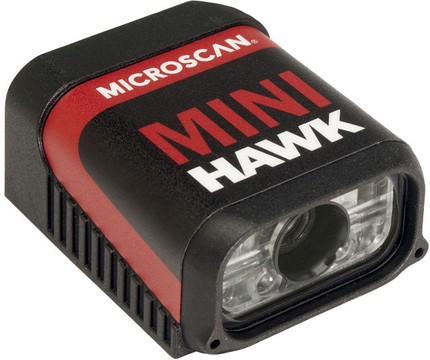

Microscan FIS-6300-2016G Fixed Mount Scanners

The Microscan Mini Hawk 3MP Fixed Barcode Scanner is a compact powerhouse designed for challenging direct part mark (DPM) and barcode reading tasks. With its advanced **X-Mode Technology**, this imager ensures exceptional decoding capabilities even for damaged or distorted symbols, making it ideal for diverse applications in automotive, medical devices, and electronics. The Mini Hawk's lightweight design and easy setup—via the **EZ Button**—allow for seamless integration into tight spaces and robotic systems, providing high-speed performance with multiple resolution options.

Key Features:

• X-Mode Decoding Technology: Guarantees aggressive decoding without configuration.
• Autofocus: Automatically adjusts focal distance for optimal symbol reading.
• Wide Field of View: Reads symbols up to 2" square from as close as 1".
• Lightweight Design: Easy to mount in tight spaces and robotic applications.
• ESP® Easy Setup Program: Simplifies configuration of all Microscan readers.

Specifications:

• Model Name: Mini Hawk 3MP
• Height: 1" (25.4 mm)
• Width: 1.80" (45.7 mm)
• Length: 2.10" (53.3 mm)
• Weight: 2 oz. (57 g)
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Read Rate: Up to 60 decodes/second (HS model)
• Connectivity: RS-232, RS-422, or USB options available
• Environmental Rating: IP54, operates in up to 90% humidity
