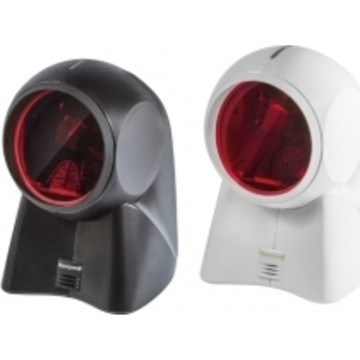

Honeywell Orbit 7190g Barcode Scanner 1D/2D, USB, White, Kit, EAS

The Honeywell DuoFlex 7190g is a hybrid presentation and handheld barcode scanner engineered for retail, hospitality, pharmacy and other point-of-sale environments that require fast, reliable capture of printed and on-screen codes. Combining omnidirectional 1D laser scanning with an integrated 2D area imager, the 7190g reads linear, 2D and PDF-style barcodes with consistent throughput while offering wired multi-interface connectivity for straightforward POS integration. Its compact countertop form, adjustable scan head and clear status indicators help streamline cashier and customer-presented scanning workflows, reducing transaction time and simplifying deployment in high-traffic commercial settings where accuracy and operational continuity are essential.

Key Features

• Hybrid scanning engine: Combines omnidirectional laser and 2D area imaging to read 1D, 2D and PDF barcodes from labels and smartphone displays.
• High throughput: Delivers up to 1120 scans per second to support fast-paced checkout and high-volume scanning tasks.
• Multi-interface wired connectivity: Supports USB, keyboard wedge, RS-232 and RS-485 for flexible integration into existing POS and workstation setups.
• Presentation and handheld flexibility: Desktop/presentation form factor with handheld capability and an adjustable scan head for hands-free or targeted scanning of larger items.
• Retail-ready ergonomics: Compact countertop design, included holder options and status LED indicators simplify daily operation and placement at the point of sale.
• Commercial durability and compliance: Built for commercial use with ingress protection (IP5X where specified) and CE/RoHS certifications for dependable field performance.

Specifications

• Brand: Honeywell
• Product Name: DuoFlex 7190g
• Category: Presentation Scanners
• Product Type: Barcode Scanner / Handheld barcode reader
• Scanner Type: 1D/2D (hybrid laser + imager)
• Sensor / Engine Type: Laser (1D) and Imager (2D / integrated area imager)
• Read / Scan Rate: 1120 reads/scans per second
• Supported Codes / Symbologies: 1D (e.g., Code 39, UPC, GS1 DataBar), 2D (Data Matrix, PDF417, QR Code)
• Standard Interfaces: Keyboard wedge (KBW), RS-232, RS-485, USB
• Connectivity Technology: Wired (USB, keyboard wedge, RS-232, RS-485)
• Form Factor: Presentation / Desktop (desktop, countertop) with handheld operation support
• Color Options: White, Black (varies by model)
• Dimensions (H x W x D): 148 x 103 x 108 mm (also listed as 4.3 x 4.1 x 5.8 in)
• Weight: 410 g
• Working / Scan Distance: Working distance example: 327 mm; Scan distance example: 0 - 3.28 ft
• Adjustable Scan Head Tilt: 30° (model-dependent)
• Scan / Laser Pattern: Omnidirectional laser patterns (examples: 20-line omnidirectional; 5 fields of 4 parallel lines) and area image
• Imager Resolution: 640 x 480 pixels (where specified)
• Power Input: 5 V DC
• Power Consumption: 472 mA (active); Standby current: 255 mA (where specified)
• Cable / Kit Options: USB kit available; straight USB cable length example: 3 m; desk/wall holder included (model-dependent)
• Ingress Protection: IP5X (where specified)
• Certifications: CE, RoHS
• Operating Temperature: 0 - 40 °C (32 - 104 °F listed in some variants)
• Storage Temperature: -40 - 60 °C (also listed as -40 - 140 °F in some variants)
• Operating Relative Humidity: 5 - 95%
• Light Immunity / Brightness: Direct sunlight tolerance: 4,842 - 100,000 lux (model-dependent)
