Elo

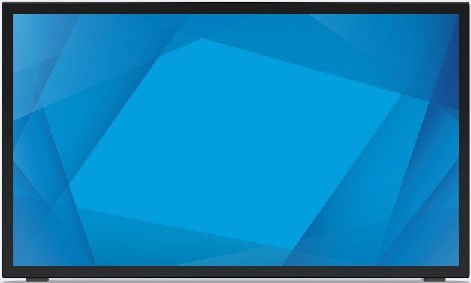

Elo 2270L 27'' Full HD Touchscreen Monitor, Clear, Black

SKU:

E510644

Elo E510644 pairs a TouchPro Projected Capacitive touch surface with 10-point multi-touch recognition on a 27-inch Full HD LED panel, making it the defining specification for interactive POS and self-service deployments. The TFT display resolves to 1920 x 1080, renders 16.7 million colors at 300 Nit brightness, and maintains a 1,000:1 native contrast ratio with a 14 ms typical response time and a 75 Hz standard refresh rate. Viewing angles reach 178 degrees horizontally and 178 degrees vertically, and the scratch-resistant glass carries an IK07 impact protection rating alongside low blue light and flicker-free ComfortView features. Connectivity spans HDMI, VGA, DisplayPort, and 2 USB ports, and built-in speakers are integrated into the chassis. At 13.89 lb and 1.7 inches deep, the black unit mounts via 100 x 100 VESA or sits on a tabletop adjustable from 20 degrees to 70 degrees of tilt. Energy Star certification is included.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 2270L is a 22-inch Full HD LCD touchscreen monitor built for point-of-sale counters, self-service kiosks, and interactive digital signage in retail, hospitality, and customer-facing environments. Its TouchPro Projected Capacitive (PCAP) panel supports up to 10 simultaneous touch points at 1920 x 1080 resolution, delivering precise, responsive interaction across busy, high-traffic settings. The ultra-slim bezel design and adjustable kickstand — ranging from 20° to 70° — give installers flexible placement options, while VESA 100 x 100 compatibility opens wall-mount and custom-stand configurations. A 250 Nit LED-backlit TFT panel, 1,000:1 contrast ratio, and 178° viewing angles ensure clear visibility from virtually any position. Built-in speakers, HDMI, DisplayPort, VGA, and three USB ports make it a complete, ready-to-deploy display. Energy Star certification and TÜV Rheinland-validated low blue light and flicker-free technology round out a durable, operator-friendly solution.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 27"
Viewable Screen Size 27"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 14 ms
Response Time Details 14 ms Typical
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type Wall Mountable
Placement Tabletop
Backlight Technology LED
Features
  • Narrow Bezel
  • Scratch Resistant
  • ComfortView
  • Low Blue Light
  • Flicker-free
  • On-screen Display (OSD)
  • Power Switch
  • OSD/Power Lock
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Impact Protection (IK) Rating IK07
Video
Maximum Resolution 1920 x 1080
Standard Refresh Rate 75 Hz
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 300 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
DisplayPort Yes
Number of USB Ports 2
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Color Family Black
Product Color Black
Height 14.7"
Width 24.7"
Depth 1.7"
Weight (Approximate) 13.89 lb
Miscellaneous
Energy Star Yes
Documents
ico-plus ico-minus
Product document 2770l-2023.pdf E510644 Product document mod-70-series-elo-monitor-datasheet.pdf MOD-70-SERIES Product document mod-70-series-elo-monitor-user-manual.pdf MOD-70-SERIES
FAQs
ico-plus ico-minus
What video input options does the Elo 70-Series 2270L touchscreen monitor support?
The Elo 2270L provides VGA, HDMI, and DisplayPort signal inputs, along with a USB 2.0 Type B port for touch connectivity and two USB 2.0 Type A ports for peripherals.
How many simultaneous touch points does the Elo 2270L support, and does it require additional drivers?
The Elo 2270L supports up to 10 simultaneous touch points using TouchPro Projected Capacitive (PCAP) technology. No additional drivers are needed when connected to Windows 7 or Windows 10, as it uses the built-in Windows HID drivers.
What mounting and angle adjustment options are available on the Elo 2270L?
The kickstand is manually adjustable from 20° to 70°, and the rear panel includes a 100 x 100 mm VESA mount interface compatible with M4 screws, supporting both tabletop and wall-mount configurations.
What certifications does the Elo 70-Series 2270L carry for energy efficiency and eye comfort?
The monitor is Energy Star 8.0 certified and has received TÜV Rheinland Low Blue Light (Software Solution) and Flicker-Free certifications, confirming both power efficiency and reduced visual strain during extended use.
What is included in the box when the Elo 2270L ships?
The package includes the touch monitor, a quick installation guide, an HDMI cable, a USB touch cable, a North American power cord, a European power cord, an EEI label, tie wraps, and replaceable plastic cover plates for the feet.
What warranty and impact resistance does the Elo 2270L offer for high-traffic deployments?
The Elo 2270L is backed by a three-year warranty and features IK07-rated scratch-resistant glass, making it suitable for demanding point-of-sale, self-service kiosk, and interactive digital signage environments.
