Elo

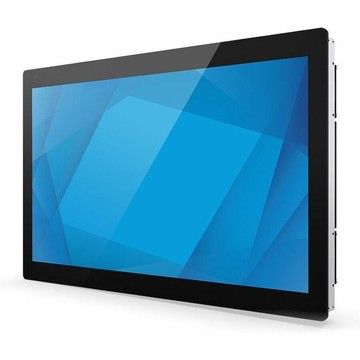

Elo 27'' Outdoor Open Frame Kiosk Ready

SKU:

E399052

Rated IP66 and IK10, the Elo E399052 is a 27-inch open-frame outdoor touchscreen built for continuous 24-hour, 7-day operation across an extended temperature range of -4°F (-20°C) to 140°F (60°C). Its TFT LCD panel delivers 1920 x 1080 Full HD resolution at 1320 Nit brightness with a 1,000:1 native contrast ratio and a 14 ms response time, supporting up to 10 simultaneous touch points via projected capacitive technology in either landscape or portrait orientation. An ambient light sensor adjusts brightness automatically, while the LED backlight carries a rated life of 5.7 years. Input voltage accepts 12 V DC, 120 V AC, or 230 V AC, and off-mode power consumption drops to 260 mW. Connectivity spans HDMI, DisplayPort, USB, serial, RS-232C, and Ethernet, with Android 10 on board. The 200 x 100 VESA-compatible chassis measures 25.9 in wide by 16.3 in tall by 2.6 in deep and weighs 29.98 lb. RoHS, China RoHS, and WEEE compliant, the E399052 ships with flush mount brackets and carries a 2-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 1515L is a 15-inch LCD touchscreen monitor designed for system integrators, value-added resellers, and point-of-sale deployments in retail, hospitality, and light industrial environments. Built from the ground up as a purpose-made touch solution, it features 5-wire resistive multi-touch technology that accepts input from a finger, stylus, or gloved hand, making it well suited for demanding public-facing use. The 4:3 display delivers XGA resolution up to 1024 x 768 at 250 Nit brightness and a 700:1 contrast ratio with 16.7 million colors, while LED backlighting keeps power consumption to just 13 W. Its compact footprint, VESA mount compatibility, side-mounted lockable controls, and factory-sealed housing make it equally practical as a desktop or wall-mounted unit. A 3-year limited warranty rounds out a cost-effective, durable package.

Main Features

  • Connection: USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Ingress Protection (IP) Rating IP66
Impact Protection (IK) Rating IK10
Panel Technology Thin Film Transistor (TFT)
Operation Hours 24 Hours/7 Days
Display & Graphics
Number of Screens 1
Viewable Screen Size 27"
Display Screen Type LCD
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Display Resolution 1920 x 1080
Graphics Modes Full HD
Response Time 14 ms
Aspect Ratio 16:9
Backlight Technology LED
Orientation Landscape/Portrait
Maximum LED Life 5.7 Year
Video
Scan Format 1080p
Native Contrast Ratio 1,000:1
Brightness 1320 Nit
Network & Communication
Ethernet Yes
Interfaces/Ports
USB Yes
HDMI Yes
DisplayPort Yes
Serial Yes
RS-232C Input Yes
Software
Operating System Android 10
Power Description
Input Voltage
  • 12 V DC
  • 120 V AC
  • 230 V AC
Off-Mode Power Consumption 260 mW
Environmental Conditions
Minimum Operating Temperature -4°F (-20°C)
Maximum Operating Temperature 140°F (60°C)
Minimum Storage Temperature -22°F (-30°C)
Maximum Storage Temperature 176°F (80°C)
Minimum Operating Humidity 10%
Maximum Operating Humidity 90%
Minimum Storage Humidity 10%
Maximum Storage Humidity 95%
Physical Characteristics
Color Family Black
Product Color Black
VESA Mount Standard 200 x 100
Mount Type
  • Flush Mount
  • Bracket Mount
Height 16.3"
Width 25.9"
Depth 2.6"
Weight (Approximate) 29.98 lb
Miscellaneous
Package Contents
  • 2799L 27" Outdoor Open Frame
  • HDMI Cable with Screw-Locked Type
  • VGA Cable
  • Remote OSD
  • Touch USB Cable with Screw-Locked Type
  • Quick Install Guide
  • Flush Mount Brackets with Screws
  • EEI Label
Application/Usage
  • Outdoor
  • Kiosk
  • Electric Vehicle Charging Station
  • Wayfinding
  • Business
  • Commercial
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1215l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1509l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1515l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1715l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1915l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-manual-elo-touch-1215l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-manual-elo-touch-1509l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-manual-elo-touch-1515l-1715l-1915l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS
FAQs
ico-plus ico-minus
What touch technologies are available in the Elo Touchscreen Monitor Series?
The series offers AccuTouch five-wire resistive and IntelliTouch surface acoustic wave technologies, designed for stable and drift-free operation across retail, hospitality, and light industrial environments.
What connectivity interfaces do the Elo Touchscreen Monitor Series displays support?
These monitors support USB and serial touch interfaces, along with VGA and HDMI video inputs.
What screen sizes and aspect ratios does the Elo Touchscreen Monitor Series cover?
The series spans integrated touchscreen sizes from 30.5 cm to 48.3 cm (12 to 19 inches) and offers both 4:3 and 16:9 aspect ratio options, including a widescreen model.
What is the maximum display resolution available in the Elo Touchscreen Monitor Series?
The maximum resolution supported is 1280 x 1024 pixels, with up to 16.2 million viewable colors.
What warranty does the Elo Touchscreen Monitor Series carry, and how long is the product lifecycle?
The series carries a standard 3-year warranty and is designed for a long product life cycle with worldwide agency approvals.
