Elo

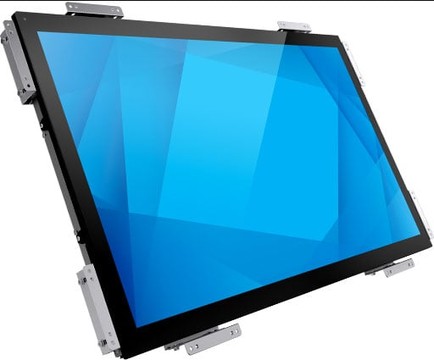

Elo 4363L, 24/7, Projected Capacitive, Full HD, black

SKU:

E344056

Rated for 24/7 operation, the Elo E344056 is an open-frame LCD touchscreen monitor built around TouchPro Projected Capacitive touch technology supporting 40 simultaneous touchpoints across a 42.5-inch Full HD TFT panel. It delivers 1920 x 1080 resolution at 450 Nit brightness with a 4,000:1 native contrast ratio, 178-degree horizontal and vertical viewing angles, and an 8 ms typical response time. The open-frame chassis measures 39.3 inches wide by 23.1 inches deep by 2.6 inches deep and weighs 37.77 lb, with VESA 400 x 400 mounting and support for landscape, portrait, and upward-facing orientations. Video inputs cover HDMI, VGA, and USB, and the display includes an ambient light sensor and on-screen display. Energy Star qualified, the E344056 suits self-order and self-checkout kiosks, payment and ticketing terminals, wayfinding installations, and automation or industrial control applications.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo 2440L 24-inch Open-Frame Touchmonitor is designed to elevate user interaction in settings like kiosks, gaming machines, and self-service stations. Renowned for its edge-to-edge glass design, this monitor offers **Superb Image Quality** and **Touch Technology** reliability. With options for single-touch and multi-touch capabilities, it integrates seamlessly into any environment, featuring a compact form factor and multiple mounting options. Invest in a touch solution that combines style, functionality, and long-term durability, backed by a **3-year standard warranty**.


Key Features:

  • True-flat design for enhanced aesthetics and usability
  • Pure-glass touchscreen ensuring optimal image quality
  • Edge-to-edge zero-bezel design for modern appeal
  • Multiple mounting options for versatile installations
  • Variety of touch technologies including IntelliTouch and projected capacitive

Specifications:

  • Model: 2440L
  • Color: Black
  • Active Display Area: 521.3 x 293.2 mm
  • Diagonal Size: 23.6 inches
  • Resolution: 1920 x 1080 Full HD
  • Brightness: 300 nits (LCD)
  • Response Time: 5 ms
  • Viewing Angle: Horizontal 170°, Vertical 160°
  • Weight: 5.7 kg (unpackaged)
  • Power Consumption: 30W (typical ON)
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years standard

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 43"
Viewable Screen Size 42.5"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 8 ms
Response Time Details 8 ms Typical
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Backlight Technology LED
HDCP Supported Yes
Features
  • On-screen Display (OSD)
  • Ambient Light Sensor
Horizontal Frequency 31.50 kHz to 80 kHz
Vertical Frequency 47 Hz to 63 Hz
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Native Contrast Ratio 4,000:1
Brightness 450 Nit
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 40
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 400 x 400
Color Family Black
Product Color Black
Height 23.1"
Width 39.3"
Depth 2.6"
Weight (Approximate) 37.77 lb
Miscellaneous
Energy Star Yes
Documents
ico-plus ico-minus
Product document 4363l.pdf E344056 Product document 4363l.pdf MOD-ELO-OPEN-FRAME-TOUCH-MONITORS
FAQs
ico-plus ico-minus
What connectivity interfaces do the Elo Open-Frame Touch Monitors support?
The Elo Open-Frame Touch Monitors support Ethernet, serial, and USB connectivity.
What touch technologies are available on the Elo Open-Frame Touch Monitors?
The monitors are available with IntelliTouch and projected capacitive touch technologies, supporting both single-touch and multi-touch configurations.
What warranty does the Elo Open-Frame Touch Monitors carry?
Elo backs these open-frame touch monitors with a 3-year standard warranty.
What types of installations or enclosures are the Elo Open-Frame Touch Monitors designed for?
The open-frame design with multiple mounting options makes these monitors suitable for integration into kiosks, gaming machines, and self-service stations.
Do the Elo Open-Frame Touch Monitors support large-format display configurations?
Yes, the product line includes both standard and large-format display options.
