Elo

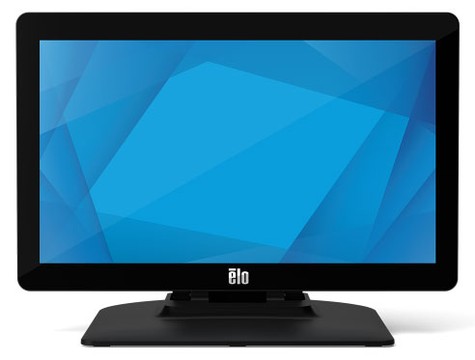

Elo 1502L, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black

SKU:

E155645

15.6" Touchscreen Monitor - Elo 1502L - Desktop LCD - 16:9 Aspect Ratio - Projected Capacitive 10-Touch - 1920 x 1080/Full HD - 16.7 million Colors - 180 nits Brightness (typical) - 700:1 Contrast Ratio (typical) - USB-C Touch Controller Interface - Anti-Glare - Zero-Bezel - Stand - Black - 3-Year Warranty - Worldwide. Box Includes Quick Install Guide - HDMI Cable (Part# E538507) - Power Brick (Part# E211174) - 2x Cable Clamps - 2x Tie Wraps - EEI Label - USB Cable (Part# E210789) - NA Power Cable - EU Power Cable - 3x Screws for Cable Clamps - 2x Screws for Cable Doors.
Description
ico-plus ico-minus
Elo 1302L Touchscreen Monitor is the epitome of interactive excellence, designed for commercial environments. This sleek 13-inch monitor features Elo's advanced TouchPro® PCAP technology, allowing for edge-to-edge glass that supports up to 10 simultaneous touches. Its compact design is perfect for POS systems, self-service kiosks, and customer-facing displays. With robust connectivity options, including USB Type-C, HDMI, and VGA, and dual built-in speakers, it's an all-in-one solution for your business needs. The Elo 1302L also boasts versatile mounting options and accessories tailored for efficient operations, all backed by a comprehensive three-year warranty.
Key Features
  • 13-inch LCD touchscreen with Edge-to-edge design
  • Integrated 10-touch support for enhanced interactivity
  • Commercial-grade durability and efficiency
  • USB Type-C for power, touch, and video connectivity
  • Multiple mounting options including stand, wall, and pole mounts
  • Compatible with finger, glove, and stylus inputs

Specifications
  • Color: Black
  • Diagonal Size: 13.3" / 337.82 mm
  • Active Touch Area: 11.57" x 6.5" / 293.76 mm x 165.24 mm
  • LCD Technology: Active matrix TFT LCD
  • Touch Technology: TouchPro PCAP
  • Aspect Ratio: 16:9
  • Native Resolution: 1920 x 1080
  • Brightness: 300 nits (Panel), 270 nits (with TouchPro PCAP)
  • Input Power: 12VDC +/-5%
  • Weight: 5.11 lbs. / 2.32 kg (with stand)
  • Operating Temperature: 0° C to 40° C
  • Warranty: 3 years

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 16"
Viewable Screen Size 15.6"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 25 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Mount Type
  • Pole Mount
  • Shelf Mount
  • Wall Mountable
Backlight Technology LED
Features
  • Anti-glare
  • On-screen Display (OSD)
  • Wide Viewing Angle
Horizontal Frequency 31.50 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Curved Screen No
Video
Maximum Resolution 1920 x 1080
Standard Refresh Rate 75 Hz
Color Supported 16.7 Million Colors
Native Contrast Ratio 700:1
Brightness 180 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Yes
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
Micro HDMI Yes
USB Yes
VGA Yes
USB Type-C Yes
Number of HDMI Inputs 1
Number of USB Ports 4
Total Number of USB Type-C Ports 1
Built-in Devices
Built-in Devices USB Hub
Power Description
Operating Power Consumption 12 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Color Family Black
Product Color Black
Height 9.6"
Width 15.2"
Depth 1.3"
Height with Stand 11.21"
Width with Stand 15.23"
Depth with Stand 7.84"
Weight (Approximate) 3.62 lb
Weight with Stand (Approximate) 6.72 lb
Miscellaneous
Country of Origin China
Documents
ico-plus ico-minus
Product document 1502l-2021.pdf E155645 Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-19inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-22inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-24inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-27inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-user-manual.pdf TOUCH-SOLUTIONS-02-SERIES
