Datalogic

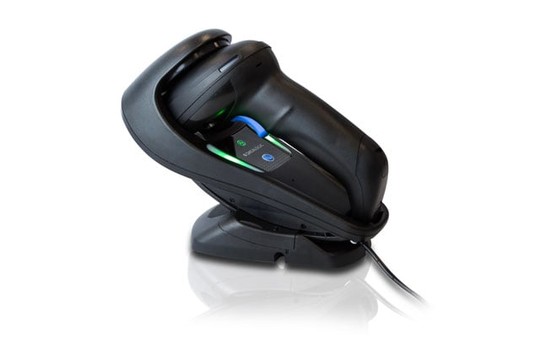

Datalogic Gryphon I GBT4500 Barcode Scanner Cordless, Bluetooth, 2D Imager, IP52, Black, Disinfectant Ready

SKU:

GBT4500-BK-BTK1DRA

Datalogic Gryphon GBT4500 Handheld barcode scanner variant: Gryphon BlueScan Pro. A compact, ergonomic handheld scanner from the Gryphon GBT4500 family designed for professional scanning environments. Attributes: scanner capability connectivity imager resolution form factor wireless charging ingress protection rating
Description
ico-plus ico-minus

The DataLogic Gryphon I GBT4500 Barcode Scanner redefines efficiency and design in handheld scanning. Boasting advanced Megapixel sensor technology and chic ergonomics, this scanner delivers superior performance across various applications. With Bluetooth® and Datalogic's STAR Cordless System™, enjoy unparalleled flexibility in wireless communication. The innovative inductive charging feature ensures hassle-free maintenance, minimizing downtime. Ideal for retail, healthcare, and light manufacturing, it combines seamless usability with a robust design for a truly versatile scanning experience.


Key Features
  • High-performance 1MP sensor for optimal scanning of 1D and 2D codes
  • Inductive wireless charging for reliable, maintenance-free operation
  • Motionix™ technology for intuitive mode transitions between handheld and stand
  • Omnidirectional reading to enhance scanning efficiency
  • Available in High Density (HD) models for smaller code readability

Specifications
  • Wireless Communication:
    • Bluetooth® and Datalogic STAR Cordless System
    • Radio Frequencies: 433 MHz and 910 MHz
  • Battery:
    • Lithium-Ion, 3250 mAh
    • Charge Time: 4 Hours
    • Reads per Charge: 80,000
  • Reading Performance:
    • Maximum Resolution: 1280 x 800 pixels
    • Reading Angle: +/- 65° pitch, 360° roll
  • Environmental:
    • Operating Temperature: 0 to 50 °C
    • Drop Resistance: 1.8 m
    • IP52 Sealing
  • Dimensions: 16.6 x 6.8 x 10.9 cm / 235 g
  • Warranty: 3-Year Factory Warranty

Main Features

  • Rugged: Commercial

  • Case color: Black

  • IP Rating: IP52

  • Range: Short Range

  • Connectivity: Cordless

  • Connection: Bluetooth, USB

  • Scanner Capability: 2D, Imager

  • Battery Features: Wireless Charging

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal codes:
  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Digital Watermarking:
  • Digimarc Barcodes
Light Source Laser
Image Sensor Type Imager
Scan Pattern Single Line
Scanner Range Standard Range
Scanning Distance 164 ft
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 35 in/s
Image Formats
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light 100000 lux
Drop Specification Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 15 mil
Maximum Element Resolution (PDF417) 10 mil
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Height 4.3"
Width 2.7"
Depth 6.5"
Weight (Approximate) 8.29 oz
Miscellaneous
Package Contents
  • Gryphon GBT4500 Handheld Barcode Scanner
  • WLC4090-BK-BT-DRA base
  • USB cable 90A052258
Ingress Protection (IP) Rating IP52
Application/Usage
  • Industrial
  • Retail
  • Healthcare
  • Transportation
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document gbt4500.pdf MOD-GRYPHON-GBT4500
