Datalogic

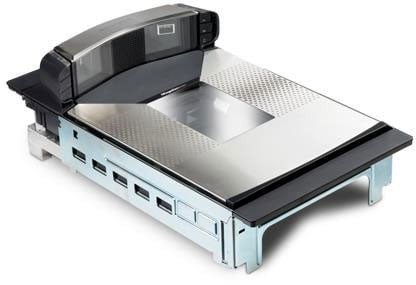

Datalogic Magellan 9800i, Scanner/Scale, Medium Platter, Display, RS-232 Cable

SKU:

98201010121-014212

The Datalogic 98201010121-014212 is a serial-interface configuration of the Magellan 9800i in-counter scanner/scale, fitted with a medium platter, customer-facing display, and RS-232 cable for direct POS integration. Its imager-based architecture reads in all planes simultaneously, covering all standard 1D linear codes including GS1 DataBar, stacked codes such as PDF417, MicroPDF417, EAN/JAN Composites and GS1 DataBar Stacked Omnidirectional, and 2D codes including Data Matrix, QR Code, Micro QR and Aztec Code. The in-counter chassis measures 11.5 in wide, 4 in deep and 2.7 in tall. A centered speaker delivers .wav audio feedback, and the large horizontal window accommodates both standing and seated cashiers. Environmental compliance spans RoHS, China RoHS and REACH, and the unit is backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Magellan 9800i is a high-performance in-counter barcode scanner designed for demanding retail and grocery checkout environments. Flush-mounted into the checkout counter, it uses advanced digital imaging to read both 1D and 2D barcodes seamlessly across all planes without requiring cashiers to orient items, reducing rescans and accelerating throughput. An optional Top Down Reader adds a large topside field of view and a customer-facing imager for mobile coupons and loyalty codes, while optional integrated scale configurations support single- and dual-interval weighing. The ScaleSentry shrink monitoring system helps reduce losses at the point of sale. Multi-interface connectivity — including USB, RS-232, and IBM 46XX — simplifies integration with diverse POS systems, and a sapphire glass scanning window ensures long-term durability.

Main Features

  • POS: Yes

  • Connection: Serial

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
2D Codes:
  • Aztec Code
  • Data Matrix
  • QR Code
  • Micro QR
Image Sensor Type Imager
Interfaces/Ports
Host Interface Serial
Physical Characteristics
Form Factor In-counter
Height 2.7"
Width 11.5"
Depth 4"
Miscellaneous
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document 9800i.pdf 98201010121-014212 Product document 9800i-2021.pdf MOD-MAGELLAN9800I
FAQs
ico-plus ico-minus
What barcode symbologies can the Datalogic Magellan 9800i read?
The Magellan 9800i reads all standard 1D and GS1 DataBar linear codes, stacked codes including PDF417, MicroPDF417, and GS1 DataBar variants, 2D codes including Aztec Code, Data Matrix, QR Code, and Micro QR, and optionally Digimarc barcodes.
Which POS interfaces does the Datalogic Magellan 9800i support?
The Magellan 9800i supports USB, RS-232, IBM 46XX, OEM USB Plus Power, and USBCOM-SC, with auxiliary ports including powered RS-232, remote scale display, EAS controller ports, and two powered USB Host Type A ports.
Does the Datalogic Magellan 9800i include an integrated scale, and what are its weighing capacities?
Scale-equipped configurations include a single interval scale with a capacity of 0 to 15.0 kg and a minimum increment of 0.005 kg, or an optional dual interval scale with Range 1 capacity of 0 to 6.0 kg and Range 2 of 6.0 to 15.0 kg; the maximum static weight supported is 68.0 kg.
What is the operating temperature range for the Datalogic Magellan 9800i?
The Magellan 9800i operates between 10 to 40 °C (50 to 104 °F) and can be stored or transported in temperatures from -40 to 70 °C (-40 to 158 °F).
Does the Datalogic Magellan 9800i support loss-prevention or EAS features?
Yes, the Magellan 9800i includes Checkpoint EAS compatibility, ScaleSentry shrink monitoring that uses an infrared beam to detect misplaced items on the scale platter, and Sensormatic SmartSentry firmware integration with the Sensormatic AMB-9010/IPS EAS Deactivation Controller.
What remote management and software utilities are available for the Datalogic Magellan 9800i?
The Magellan 9800i supports remote management via OPOS, JavaPOS, IBM Director, and Wavelink Avalanche, and includes the Scanalyzer Magellan On-Screen Programming configuration utility along with OPOS and JavaPOS utilities, all available for download at no charge.
