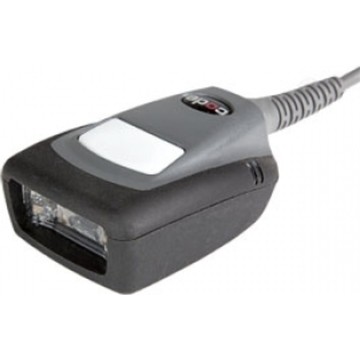

Code OmniScan 1000 Barcode Scanner 1D and 2D, Disinfectant-Ready, Dual-field optics, RS-232, Coiled 8ft

SKU:

CR1011-C501

Most barcode scanners are built to handle one label type well, but the Code 1000 is designed to read both wide 1D and small dense 2D barcodes with speed and accuracy. This compact, cabled handheld imager uses dual-field optics and glare reduction to capture barcodes from shiny surfaces and even cell phone screens, helping streamline scanning in retail, healthcare, and other demanding environments.
Description
ico-plus ico-minus

The Compact Plus (Code CR1000 Barcode Scanner) is a compact, corded 2D area-imager designed for high-use commercial and clinical environments where reliable, high-speed barcode capture is essential. Engineered for retail, point-of-sale, healthcare, kiosks, manufacturing and OEM installations, this scanner combines patented dual-field optics and omnidirectional decoding to read both wide 1D labels and dense 2D codes, including barcodes on mobile device screens and reflective surfaces. Its disinfectant-ready housing, flexible handheld or in-stand presentation modes, and broad interface support (USB and serial/RS232) help streamline integration and maintain hygiene, durability and throughput in demanding B2B workflows.

Key Features

  • Dual-field optics: Patented wide-field and high-density optical design enables fast, reliable decoding of both large 1D barcodes and small, dense 2D symbols.
  • Omnidirectional capture: High-speed omnidirectional decoding reduces alignment effort and increases throughput across mixed barcode workflows.
  • Healthcare-ready housing: Disinfectant-ready enclosure supports use in clinical and other hygiene-sensitive environments without sacrificing durability.
  • Flexible operation: Supports handheld, hands-free (in-stand/presentation) and on-counter use with manual, automatic, continuous scan and motion-detection triggering modes to fit varied workflows.
  • Integration and connectivity: Broad interface support including USB 2.0 and RS232, programmable data editing and JavaScript-based parsing streamline system integration and data handling.

Specifications

  • Brand: Code
  • Product Reference: Code CR1000 Barcode Scanner
  • Product Name: Compact Plus
  • Scanner Type: 2D Area Imager / Imager
  • Scanner Capability: 2D (1D and 2D symbologies)
  • Optics: Patented dual-field (high-density & wide-field) omnidirectional
  • Image Sensor Type: CMOS
  • Disinfectant-Ready Housing: Yes
  • Connectivity: Corded / Cabled
  • Interfaces: USB 2.0 (HID/Keyboard/Virtual COM), Serial / RS232
  • Scan Pattern: Area
  • Supported Symbologies: 1D, 2D
  • Triggering Modes: Manual, Automatic, Continuous scan, Motion detection
  • Glare Reduction Technology: Yes (patented glare-reduction for reflective surfaces)
  • Included Cable Types / Lengths (varies by configuration): Straight USB (6 ft), Coiled USB (8 ft); RS-232 options available
  • Power Source / Requirements: USB; 5 VDC; typical < 300 mA; idle < 1 mA
  • Memory: 1 MB Flash; 16 MB RAM
  • Mounting / Integration Features: Threaded brass inserts for fixed-mount and OEM installations

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Connection: RS232, Serial, USB

  • Scanner Capability: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Codabar
  • Code 11
  • Code 32
  • Code 39
  • Code 93
  • Code 128
  • IATA 2 of 5
  • Interleaved 2 of 5
  • GS1 DataBar (RSS)
  • Hong Kong 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • NEC 2 of 5
  • Pharmacode
  • Plessey
  • Straight 2 of 5
  • Telepen
  • Trioptic
  • UPC/EAN/JAN
Stacked 1D:
  • GS1 Composite (CC-A/CC-B/CC-C)
  • MicroPDF
  • PDF417
2D:
  • Aztec Code
  • Code 49
  • Codablock F
  • Data Matrix
  • Han Xin
  • MaxiCode
  • Micro QR
  • QR Code
Proprietary 2D:
  • GoCode(Additional License Required)
Postal Codes:
  • Australian Post
  • Intelligent Mail
  • Japan Post
  • KIX Code
  • Korea Post
  • Planet
  • Postnet
  • UK Royal Mail
  • UPU ID-tags
Image Sensor Type CMOS
Interfaces/Ports
Host Interface Serial
Physical Characteristics
Color Light Gray
Height 1.2"
Width 2.2"
Length 2.6"
Weight (Approximate) 2.40 oz
Miscellaneous
Additional Information

USB Cable separate
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • WEEE
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document mod-code-cr1000-scanners-code-readers-datasheet.pdf CR1011-C501 Product document mod-code-cr1000-scanners-code-readers-user-manual.pdf CR1011-C501 Product document code-cr1000-scanners.pdf CR1011-C501 Product document Logiscenter_Code_CR1000.pdf CR1011-C501 Product document cr1100.pdf MOD-CODE-CR1000-SCANNERS
FAQs
ico-plus ico-minus
What barcode types can the Code CR1000 read, and can it scan barcodes displayed on mobile device screens?
The Code CR1000 reads both 1D and 2D symbologies using a CMOS area imager with patented dual-field optics, and its glare-reduction technology enables reliable scanning from mobile device screens and other reflective surfaces.
What interfaces does the Code CR1000 support for connecting to a host system?
The scanner supports USB 2.0 (HID, Keyboard, and Virtual COM modes) and Serial RS232, giving integrators flexibility for both modern USB-based and legacy serial installations.
What triggering and operation modes does the Code CR1000 offer?
It supports four triggering modes — manual, automatic, continuous scan, and motion detection — and can be used handheld, hands-free in a stand for presentation scanning, or placed on a counter, accommodating a range of workflow setups.
Is the Code CR1000 suitable for healthcare or other hygiene-sensitive environments?
Yes, the Code CR1000 features a disinfectant-ready housing specifically designed to withstand cleaning protocols required in clinical and other hygiene-sensitive settings without compromising durability.
What are the power requirements for the Code CR1000, and does it need an external power supply?
The scanner is USB-powered at 5 VDC, drawing typically less than 300 mA during operation and less than 1 mA at idle, so no external power supply is required when connected via USB.
Does the Code CR1000 support fixed-mount or OEM installations?
Yes, the scanner includes threaded brass inserts in its housing to facilitate secure fixed-mount and OEM integration, and its JavaScript-based parsing and programmable data editing further support custom system deployments.
