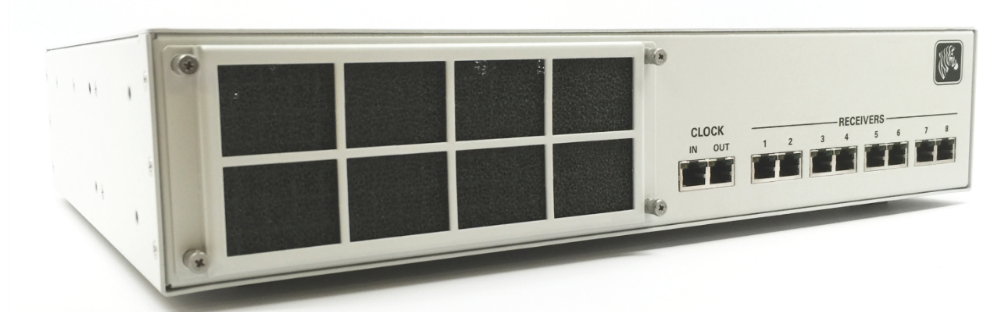

Zebra ZEBRA-UWB-HUB Wireless & Networking

The Zebra UWB Hub is an advanced Ultra-Wideband Real-Time Locating System designed for precision asset tracking and real-time locating with exceptional accuracy and long-range capabilities. With its patented technology, this hub effortlessly tracks thousands of assets and personnel, providing real-time location accuracy better than 30 cm (1 foot) and a range of up to 200 meters (650 feet). Featuring a user-friendly browser-based interface, easy installation, and up to 7 years of battery life for tags, the Zebra UWB Hub is ideal for demanding industrial environments.

• Exceptional Real-Time Location Accuracy: Better than 30 cm (1 foot) in line of sight.
• Long RTLS Range: Up to 200 meters (650 feet).
• Fast Intuitive Setup: Typical installation takes just one day.
• Supports Up to 3,500 Tags: Handles tag throughput of 1 Hz per hub.
• Compliance: Compliant with IEEE 802.15.4.f and ISO-24730-61 standards.

• Product Model: Zebra UWB Hub
• Part Number: UWH-1100-A-00AA
• Operating Temperature: 0°C to 40° C (32° F to 104° F)
• Dimensions: 35.6 cm (L) x 22.9 cm (W) x 8.9 cm (H)
• Weight: 1.64 kg (58 oz)
• Power Supply: 100 - 240 VDC 50/60 Hz 2.5 A
• Network Interface: Ethernet/CAT 5e
• Tag Capacity: Up to 10,000 tags/hub
• Certification: FCC, CE, UL60950-1
