Zebra

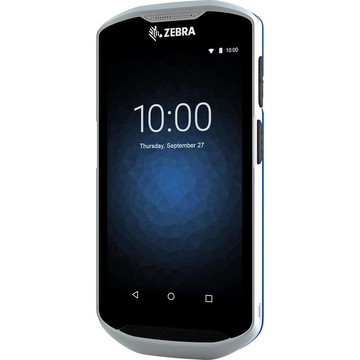

Zebra TC52-HC Touch Computer 2D, 5", 4GB, 32GB, IP65/IP67, 4100mAh

SKU:

TC520K-1HEZU4P-A6

Mobile Computer, Zebra TC52-HC, Wireless, Android 11 GMS, IP65/IP68, On-Screen Touch, Phone-size, Wi-Fi/Bluetooth, 4GB RAM/ 32GB FLASH MLC, 2D Imager, Near Field Communication, 2x2 MIMO (WLAN Only), Healthcare, FFC, Rear Camera Enterprise, Rear Button, Warm Swap Connector, SE4710, No Wireless Power Charging, Li-ion battery, Rest of World (EMEA, LATAM, APAC)
Description
ico-plus ico-minus

The Zebra TC52-HC Mobile Computer is engineered specifically for healthcare environments, offering a cutting-edge touch computing solution that combines durability with the familiar Android interface. With robust features designed for clinical collaboration, this device ensures clear VoIP calls and secure text messaging while maintaining a high level of sanitation. Built with advanced medical-grade materials, the TC52-HC is designed for frequent cleanings, making it the ideal tool for healthcare professionals dedicated to providing exceptional patient care.


Key Features
  • Advanced touchscreen technology: 5-inch display designed for wet and gloved operation.
  • Exceptional voice clarity: Three microphones and noise-cancellation technology ensure clear communication.
  • Long-lasting battery: PowerPrecision+ battery delivers up to 14 hours of power with fast charging capabilities.
  • Disinfectant-ready: Designed to withstand frequent cleaning with medical-grade plastics.
  • High-resolution cameras: Front-facing 5 MP and rear 13 MP for video conferencing and documenting patient conditions.

Specifications
  • Physical Characteristics:
    • Dimensions: 6.1 in. L x 2.9 in. W x 0.73 in. H (155 mm L x 75.5 mm W x 18.6 mm H)
    • Weight: 8.8 oz./249 g with battery
    • Display: 5.0 in. High Definition (1280 x 720) with Corning Gorilla Glass
    • Power: Rechargeable Li-Ion, PowerPrecision+, > 4150 mAh
  • Performance Characteristics:
    • CPU: Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
    • Operating System: Android 10; upgradeable through A11/R3
    • Memory: 4GB RAM/32GB Flash
  • User Environment:
    • Operating Temp.: 14°F to 122°F (-10°C to 50°C)
    • Sealing: IP65 per applicable IEC specifications
  • Connectivity:
    • Wireless LAN: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
    • Bluetooth: Class 2, Bluetooth v5.0

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Battery Capacity: High Capacity

  • IP Rating: IP67

  • Range: Standard Range

  • Connection: Bluetooth

  • Camera: 13MP Rear Facing Camera + 5MP Front Facing Camera

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4710
Image Sensor Type Imager
Barcode Symbology Supported 1D:
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • UPCA
  • UPCE
  • UPCE1
  • ISBN/Bookland
  • ISSN
  • Coupon Code
  • Matrix 2 of 5
2D:
  • Australian Post
  • Aztec Code
  • Canada Postal
  • Composite AB
  • Composite C
  • DataMatrix
  • Dutch Postal
  • GS1 DataBar
  • GS1 Expanded
  • GS1 Limited
  • GS1 Datamatrix
  • Han Xin
  • Japan Postal
  • Maxicode
  • Micro PDF
  • Micro QR Code
  • PDF-417
  • QR Code
  • TLC-39
  • PDF-417
  • UK Postal
  • US4state
  • US4State FICS
  • US Planet
  • US Postnet
Google Mobile Services (GMS) Yes
Wireless Charging No
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Proximity
Features
  • Gorilla Glass
  • VoIP
Drop Specification (To Concrete) 48"
Air Electrostatic Discharge (+/-) 15kV AC
Direct Electrostatic Discharge (+/-) 8kV AC
Indirect Electrostatic Discharge (+/-) 8kV AC
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Slot Yes
Memory Card Supported
  • SDXC
  • microSD
  • SDHC
Maximum Memory Card Size Supported 256 GB
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 1280 x 720
Backlight Technology LED
Touchscreen Information
Touchscreen Yes
Touchscreen Type Capacitive
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 + LE
Near Field Communication (NFC) Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 8.1 Oreo
Battery Information
Battery Capacity 4300 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Maximum Battery Run Time 14 Hour
Removable Battery Yes
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Height 6.1"
Width 2.9"
Depth 0.7"
Weight (Approximate) 8.80 oz
Miscellaneous
Application/Usage Healthcare
Ingress Protection (IP) Rating IP65
