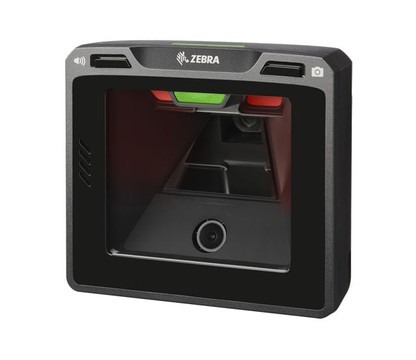

Zebra SP72 Barcode Scanner Vertical, Multi-interface, Standard Range, Midnight Black, Checkpoint EAS
SP7208-SV00004ZCWW
Select model
The Zebra SP72-V Barcode Scanner is your ultimate solution for streamlining the checkout experience, whether in grocery stores, pharmacies, or specialty shops. Designed for efficiency, this compact vertical scanner enables rapid scanning with its flat face design, making it ideal even for self-checkout kiosks. With features like a color camera for enhanced loss prevention and the ability to capture damaged or poorly printed barcodes, the SP72-V ensures minimal shrink and maximum speed. Elevate service levels, reduce wait times, and improve your bottom line with this innovative device.
Key Features
- High-Speed Scanning: Up to 120 inches per second for quick customer checkouts.
- Versatile Design: Compact vertical design suitable for various installations.
- Color Camera Option: Fosters advanced loss prevention capabilities.
- Intelligent Imaging: Captures even damaged barcodes with seamless efficiency.
- EAS Integration: Simplifies the deactivation of security tags during checkout.
Specifications
- Dimensions: 5.4 in. H x 6.0 in. W x 3.3 in. D
- Weight: 20.3 oz. (577 g)
- Operating Temperature: 32°F to 104°F (0°C to 50°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Connectivity: USB, RS232, Keyboard Wedge
- Barcode Capability: Supports major 1D and 2D barcodes, including QR codes.
- Environmental Protection: IP52 rated, protects against dust and spills.
- Warranty: Three years from the date of shipment.
Main Features
-
Rugged: Commercial
-
Connection: Serial, USB
-
Scanner Capability: 2D, 1D
| Technical Information | |
|---|---|
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported |
1D:
2D:
Digimarc:
Minimum Input Resolution:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanner Range | Standard Range |
| Scanning Distance | 9" |
| Features |
|
| Cable Type Included | USB |
| Field of View (Horizontal) | 129° |
| Field of View (Vertical) | 76° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats |
|
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 10 mil |
| Minimum Element Resolution (DataMatrix) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 15 mil |
| Minimum Element Resolution (PDF417) | 15 mil |
| Image Sensor Resolution | 1920 x 1200 |
| Illumination Type | LED |
| Illumination Color | Red |
| Air Electrostatic Discharge (+/-) | 15kV |
| Interfaces/Ports | |
|---|---|
| Host Interface |
|
| Power Description | |
|---|---|
| Standby Current | 240 mA |
| Environmental Conditions | |
|---|---|
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
|---|---|
| Form Factor | Swipe |
| Color Family | Black |
| Product Color | Midnight Black |
| Product Material | Diamond-Like Coating (DLC) Glass |
| Durability |
|
| Height | 5.4" |
| Width | 6" |
| Depth | 3.3" |
| Weight (Approximate) | 1.33 lb |
| Miscellaneous | |
|---|---|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage |
|
