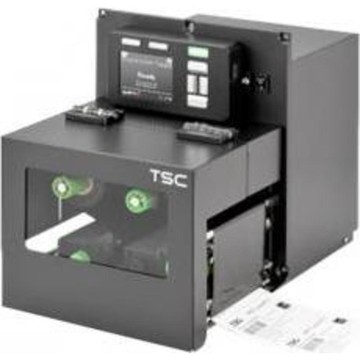

TSC PEX-1121, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

TSC's PEX-1200 Print Engine exemplifies precision and speed in label printing, making it the ideal choice for high-demand environments such as warehouses and healthcare. With a robust die-cast construction designed for maximum reliability, this print engine delivers exceptional performance, producing labels at an impressive speed of up to 18 inches per second. Its user-friendly interface and various connectivity options ensure seamless integration into both existing and new applications, while its enhanced peel-off capability accommodates a wide range of label sizes.

Key Features

• Rugged Design: Durable and reliable, ensuring outstanding print quality for every label.
• High Performance: Fastest print speed in its class at up to 18 ips; supports labels as small as 5 mm.
• Multiple Connectivity: Supports GPIO, USB, Serial, Ethernet, and optional Bluetooth & Wi-Fi.
• Exceptional Usability: Intuitive 3.5" color TFT display for easy operation.
• Ease of Maintenance: Modular design for rapid access to maintenance parts.
• Extensive Compatibility: Supports print language emulation for easy integration.

Specifications

• Print Speed: Up to 18 inches per second
• Resolution: 203 dpi (8 dots/mm) up to 600 dpi (24 dots/mm)
• Max Print Width: 4.5 inches (114 mm)
• Media Types: Continuous, die-cut, black mark, fan-fold
• Connectivity Options: RS-232, USB 2.0, Ethernet, GPIO
• Weight: 28.66 lbs (13 kg)
• Operating Conditions: 5 - 40°C, 25 - 85% Non-condensing
• Environmental Compliance: RoHS, WEEE
• Warranty: 2 years (printer), 1 million inches (print head)
