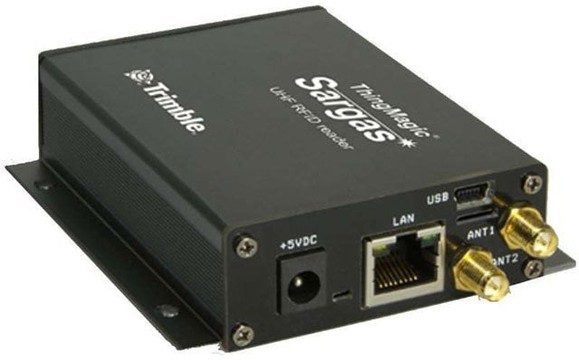

The ThingMagic Sargas reader is a high-performance, 2-antenna-port, networked, UHF reader in a low profile enclosure. Built around the ThingMagic Micro reader module, the device reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. With an onboard processor, memory and removable flash storage, the reader has features designed for enterprise applications, and easy system integration.
Select model
Prices could not be updated.
Same-day shipping
for orders placed before 2:30 p.m.
Learn more
Secure payment with
Description
The **ThingMagic Sargas UHF RFID Reader** is engineered for unmatched performance with its 2-antenna-port design, capable of reading over 750 tags per second from distances exceeding 9 meters (30 feet). Encased in a sleek, low-profile body, the Sargas utilizes advanced hardware, including a 1 GHz ARM Cortex A8 processor, to facilitate seamless integration into enterprise systems. The onboard HDMI output simplifies display connectivity, minimizing hardware needs while maintaining exceptional readability in any environment. With robust networking features and comprehensive software support, the Sargas reader is an ideal choice for modern RFID applications.
Key Features
Specifications
Key Features
- Reads up to 750 tags per second
- World-wide frequency coverage
- Networking, GPIO, USB, and micro SD ports
- Unique on-board HDMI interface
- Mercury API for easy integration
- Independent read and write RF controls
Specifications
- Dimensions: 87 mm L x 80 mm W x 23.8 mm H
- Weight: 0.27 kg (0.6 lbs)
- Operating Temperature: -20 to +60°C (-4 to +140°F)
- Storage Temperature: -40 to +85°C (-40 to +185°F)
- Antenna Ports: 2 ports with RP-SMA connectors
- RF Power Output: 0 dBm to 30 dBm (1W)
- Tag Read Rate: > 750 tags/sec
- Tag Read Distance: > 9 m (30 ft) with suitable antenna
Documents
sargas.pdf MOD-THINGMAGIC-SARGAS
